VE9 Solar Tracker Drive High Output Torque With 110×110 MM Output Square Tube

VE9 Solar Tracker Drive High Output Torque With 110×110 MM Output Square Tube

    • VE9 Solar Tracker Drive High Output Torque With 110×110 MM Output Square Tube
    • VE9 Solar Tracker Drive High Output Torque With 110×110 MM Output Square Tube
  • VE9 Solar Tracker Drive High Output Torque With 110×110 MM Output Square Tube

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: VE9"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Model: VE9"
    Gear Ratio: 61:1 Rated Torque: 2250 Nm
    Holding Torque: 30800 Nm Tilting Torque: 16000 Nm
    Efficiency: 40% Square Output: 110 * 110 Mm
    High Light:

    hydraulic slew motor

    ,

    slewing gear

    VE9 Solar Tracker Drive High Output Torque With 110×110 MM Output Square Tube



    Description

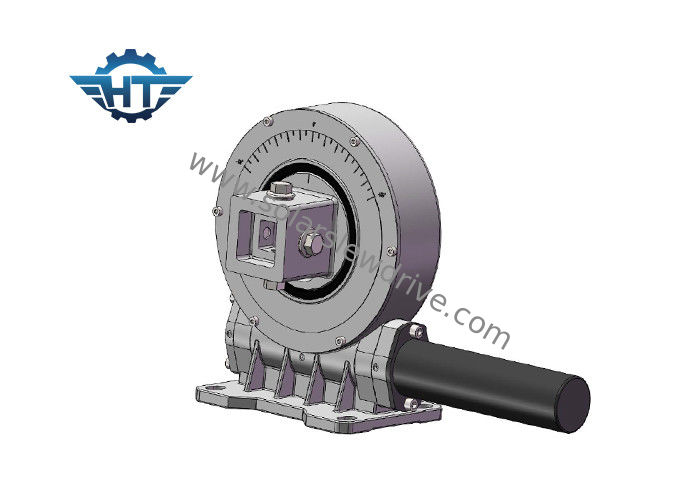

    The VE9 slew drive with 110×110 mm and 94×94 mm square output tube which is perfectly used flat single axis solar tracking system. It features high IP grade which could protect the drive from various environment conditions such as dust, water, sand etc. We are manufactured based on the standard which is required in the ISO9001 system. We also passed CE certifications. The slew drive has a long lifespan; it is designed for 30 years using life. We provide the whole lifespan technical support and 36 months to 60 months warranty based on different types of slew drives



    VE9 Solar Tracker Drive High Output Torque With 110×110 MM Output Square Tube 0



    Technical Data



    Model VE9 Place of Origin Changzhou,China
    Brand HANGTUO Type Enclosed
    Material 42CrMo,50Mn Output Torque 2250 N.m
    Tilting Moment Torque 16 KN.m Holding Torque 30.8 KN.m
    Static Axial Rating 60 KN Static Radial Rating 130 KN
    Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
    Gear Ratio 61:1 Efficiency 40%



    Advantages



    1. High backholding torque to improve the solar tracking system's safety

    2. Hard stop inside in case the mulfunctioning of the software control system

    3. Enveloping worm drive inside

    4. Multi tooth contact to ensure high load

    5. Self-locking function

    6. Square tube output 110*110 mm
