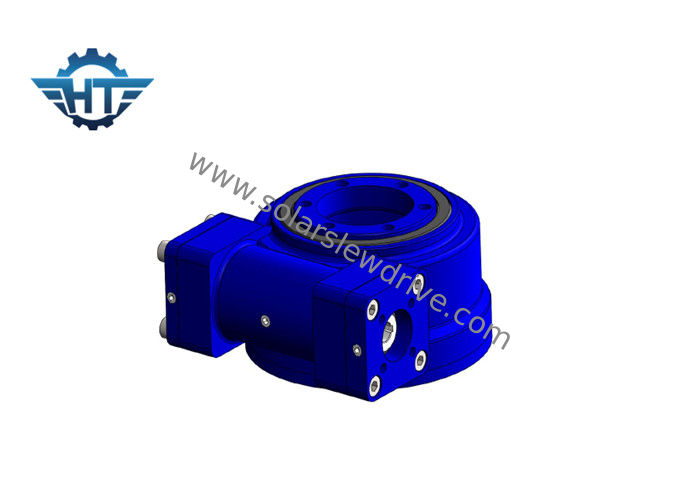

Totally Enclosed Small Slew Drive With Skeleton Sealing, IP66 Protection Grade For Harsh Environment
Description
Slew drives are an all-in-one unit comprised of geared slew ring, drive gear, housing, and motor (electric, hydraulic or AC motor). Designed for axial, radial, and moment loading.
Our slew drives are powered with hourglass (double enveloping) worm technology for increased load handling, efficiency and accuracy.
We manufacture a wide variety of slew drives, model sizes, performance ranges, sealing options, mounting characteristics and different gear reduction ratios from 28:1 to 150:1.
The slew drives could be mounted horizontally, vertically, or combination of multiple axis.
Technical Data
Model |
Rated Output Torque (N.m) |
TiltingTorque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Precision (Degree) | IP | Self-Locking | Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | Yes |
204 |
Dimensions
Other Options
Electric, hydraulic motor, AC motor
Housing: Open or Closed
Customized input configurations
Custom designs per application requirements
Planetary Gear Motor
A planetary or epicyclic gear motor combines a motor with planetary gears in a pre-assembled, ready-to-use package. It usually protected by heat shrink and drip paint to have a higher IP grade. It provides significant reduction ratios and high output in a compact unit.
Advantages of planetary gear motors
Planetary gear motors are a smart choice for a variety of applications which need high torque and low speed.
1. Compact motor size
2. High power density
3. Extended gear life
4. High efficiency
5. Highly accurate gearing function
6. Low backlash
Technical Data
| Type | Voltage DC.(V) | No load | Rated | Max torque(Nm) | ||||
| Current (A) | Speed(rpm) | Motor speed (rpm) | Current (A) | Speed(r/min) | Torque(Nm) | |||
| ZYT09RC | 24 | 0.8 (MAX) | 2.6 | 1100 | 9.5(MAX) | 2.0 | 350 | 400 |
Dimensions
