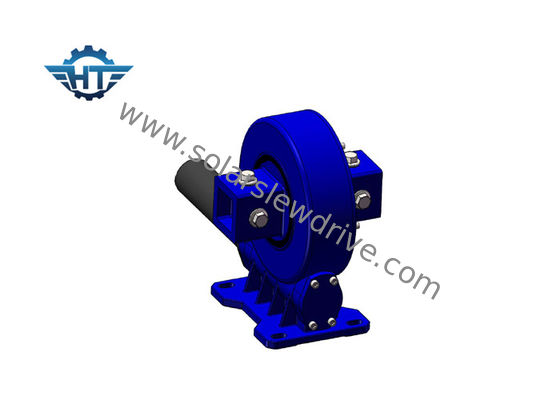

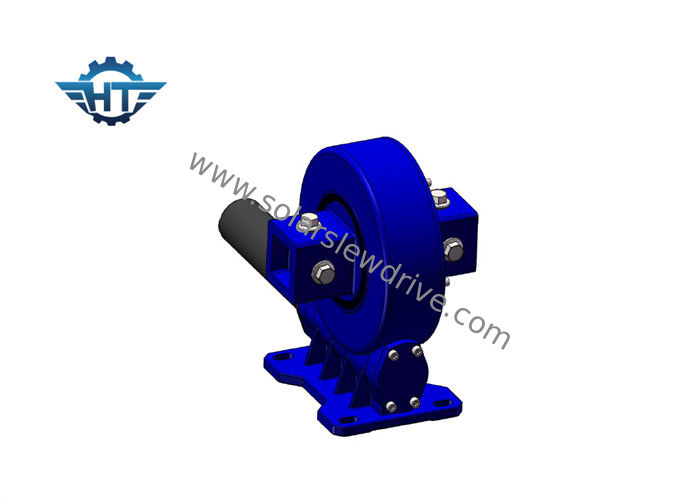

IP66 VE9 Single Worm Slew Drive With Electrical Motor For Flat Single Axis Solar Tracking System

IP66 VE9 Single Worm Slew Drive With Electrical Motor For Flat Single Axis Solar Tracking System

  • IP66 VE9 Single Worm Slew Drive With Electrical Motor For Flat Single Axis Solar Tracking System
  • IP66 VE9 Single Worm Slew Drive With Electrical Motor For Flat Single Axis Solar Tracking System
IP66 VE9 Single Worm Slew Drive With Electrical Motor For Flat Single Axis Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~360/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 42CrMo Or 50Mn Warranty: 5~10 Years
Size: 3 Inch To 25 Inch Application: Solar Tracker
Color: Customer Required Name: Slewing Drive
Motor: 24/12V DC Installation Site: Open Field
High Light:

slew drive for solar tracker

,

solar tracker drive

IP66 VE9 Single Worm Slew Drive With Electrical Motor For Flat Single Axis Solar Tracking System​



Description



VE9 Slewing drive can be basically divided into single worm slew drive and double worm slew drive.



Advantages of Slew Drive



1. Modularization

Due to the high integration of the slew drive, users do not have to purchase and machining each part of the slew drive. It also reduce the initial preparation process of the product production to a certain extent, thus greatly improve the safety of labor productivity.



2. Safety

Worm drive has the characteristics of reverse self-locking, which can achieve reverse self-locking, that is, only by the worm to drive the worm wheel. This characteristic makes the slew drive can be widely used in lifting, aerial work platform and other equipments, it’s not improving the scientific and technological, but also greatly improve the operation stability of the host and the safety factor of the operator.



3. Simplified Design

Compared with traditional gear transmission, worm gear can get a relatively large deceleration ratio, in some cases, the main machine can save reducer components, so as to reduce procurement costs for customers, but also greatly reduce the fault generation rate of the slew drives.



VE Slewing Drive Technical Data



Model Rated Output Torque (N.m) Holding Torque (N.m) TiltingTorque (N.m) Axial Load (kN) Radial Load (kN) Ratio Precision (degree) Precision IP Self-locking Weight(kg)
3" 600 1800 1500 22 15 31:1 40% ≤0.10 66 Yes 12kg
5" 800 9200 5000 16 27 37:1 40% ≤0.10 66 Yes 18kg
7" 1750 13200 7000 34 58 57:1 40% ≤0.10 66 Yes 32kg
8" 2250 20400 11200 50 80 51:1 40% ≤0.10 66 Yes 28kg
9" 4300 30800 16000 60 130 61:1 40% ≤0.10 66 Yes 52kg
12" 5600 40560 25000 77 190 78:1 40% ≤0.10 66 Yes 65kg
14" 6750 44200 48000 110 230 85:1 40% ≤0.10 66 Yes 88 kg
17" 9460 53040 67000 142 390 102:1 40% ≤0.10 66 Yes 135 kg
21" 16000 65000 89000 337 640 125:1 40% ≤0.10 66 Yes 192 kg
25" 21450 89000 112000 476 950 150:1 40% ≤0.10 66 Yes 251 kg



Advantages of DC Motors



1. Stable quality →Coming from good materials and technic

2. Low price →Not cheapest but lowest at the same quality

3. Fast Delivery → Sample order delivery within one week

4. Good service →Satisfactory service before and after sales



Features of DC Motors



1. 56 mm planetary gearbox with 60mm dc motor and 57mm brushless motor

2. Small size dc gear motor with low speed and big torque

3. 60mm gear motor provide 43 Nm torque and more reliable

4. Suitable to small diameter, low noise and big torque application

5. Reduction ratio: from 4~398



Dimensions of DC Motor



IP66 VE9 Single Worm Slew Drive With Electrical Motor For Flat Single Axis Solar Tracking System 0



Technical Data of DC Motor



Type Voltage DC.(V) No load Rated Max torque(Nm)
Current (A) Speed(rpm) Motor speed  (rpm) Current (A) Speed(r/min) Torque(Nm)
ZYT80 24 0.8 (MAX) 2.6 1100 3.8(MAX) 1.7 250 300
