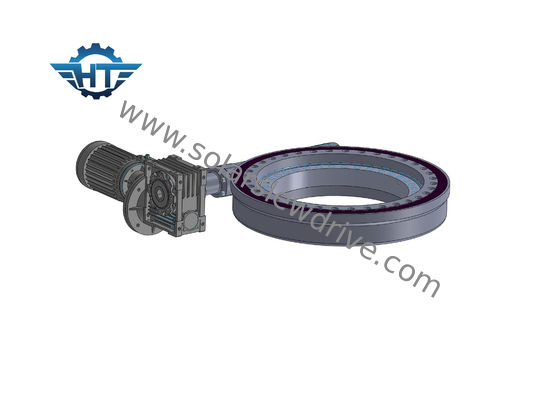

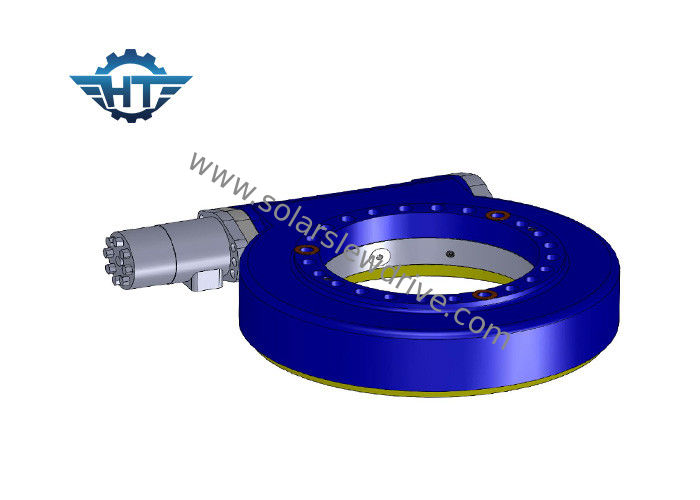

SE9 Enclosed Housing Slew Drive Gearbox For Dual Axis Solar And Single Axis Solar Tracking System

SE9 Enclosed Housing Slew Drive Gearbox For Dual Axis Solar And Single Axis Solar Tracking System

    • SE9 Enclosed Housing Slew Drive Gearbox For Dual Axis Solar And Single Axis Solar Tracking System
    • SE9 Enclosed Housing Slew Drive Gearbox For Dual Axis Solar And Single Axis Solar Tracking System
  • SE9 Enclosed Housing Slew Drive Gearbox For Dual Axis Solar And Single Axis Solar Tracking System

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE9

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Type: Enclosed Application: Industrial
    Driver: Hydraulic Motor IP Grade: IP66, IP65
    Color: As Requested Effciency: 40%
    Model: SE 9 Ratio: 61:1
    High Light:

    worm gear slew drive

    ,

    slewing ring gear

    SE9 Enclosed Housing Slew Drive Gearbox For Dual Axis Solar And Single Axis Solar Tracking System



    Introduction



    Slewing drives are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.



    Technical Data



    Product Name SE7 Slewing drive with 43Nm 24Vdc gear motors
    Output Torque 1750 N.m ; 1291.5 ft.lbs
    Tilting Moment Torque 10500 N.m; 7749 ft.lbs
    Holding Torque 13200 N.m ; 9741.6 ft.lbs
    Axial Load 132 kN ; 29700 lb
    Radial Load 58 kN ; 13050 lb
    Motor Alternatives 380V/220V AC Motor ; Stepper Motor ; Brushless Motor
    Products Style Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower
    Application Feature Solar Tracking System, Industrial Machiner



    Key Features



    1. Ready-to-install system with integrated slewing ring and easy to integrate into existing applications

    2. Reduced maintenance costs

    3. Compact packages for space saving installations

    4. Available with flanges for all standard electric motors and hydraulic motors

    5. Worm driven

    6. Sealed raceway system

    7. Modular construction allows very quick modifications

    8. Extended life-Housing which completely encloses the gearing (grease reservoir, protection against contamination and contact)

    9. Maximum load capacity in compact design
