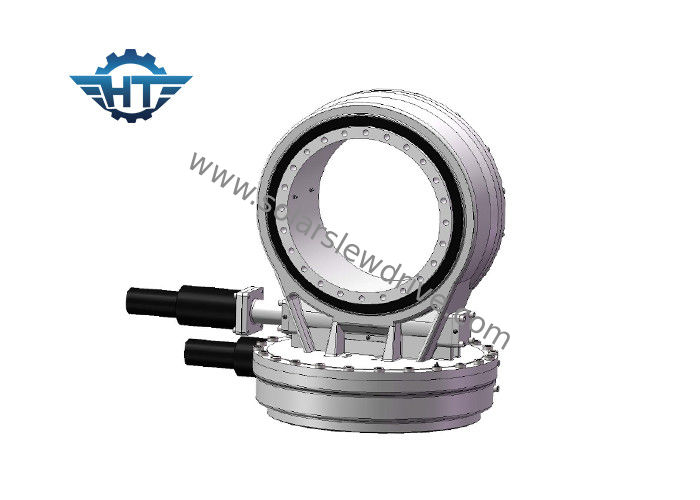

Multi-tooth Contact Solar Slew Drive Gearbox For PV Tracking System And Precision Equipment

Multi-tooth Contact Solar Slew Drive Gearbox For PV Tracking System And Precision Equipment

    • Multi-tooth Contact Solar Slew Drive Gearbox For PV Tracking System And Precision Equipment
    • Multi-tooth Contact Solar Slew Drive Gearbox For PV Tracking System And Precision Equipment
  • Multi-tooth Contact Solar Slew Drive Gearbox For PV Tracking System And Precision Equipment

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE7"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Model: SDE7"
    Gear Ratio: 57:1 Rated Output Torque: 2000 Nm
    Holding Torque: 13500 Nm Tilting Torque: 13200 Nm
    Efficiency: 40% Standard Color: RAL 9006
    High Light:

    slew drive motor

    ,

    slewing ring gear

    Multi-tooth Contact Solar Slew Drive Gearbox For PV Tracking System And Precision Equipment

    Product Description


    Our products ranging from 200mm to 5000mm,which mainly apply for tunneling equipment, harbor and shipyard cranes, construction equipment, mobile cranes, offshore technology, tower cranes, turning machinsolar energy plants, ship deck cranes, railway cranes, man lifts, wind turbines, and more. Our ability to optimize the bearing design for your specific needs is unparalleled and we will do our best to provide you.



    The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new rotary drive has features of easy installation, easy maintenance and higher IP grade.



    Features



    1. High backholding torque to improve the solar tracking system's safety

    2. Enveloping worm drive inside

    3. Multi tooth contact to ensure high load

    4. Self-locking function



    Technical Data of Slewing Drive



    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
    3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
    5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
    7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
    9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
    12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
    14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
    17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
    21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
    25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



    Applicatons



    Slewing drive are widely used in PV,CPV,STP solar tracking systems and construction applications including truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications.
