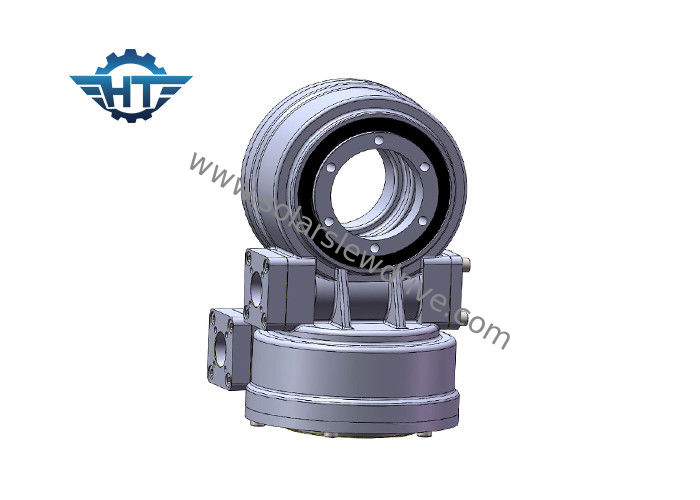

SDE5 Self Lock Dual Axis Slew Drive Gearbox With Electric Planetary Gear Motors For Solar Trackers

SDE5 Self Lock Dual Axis Slew Drive Gearbox With Electric Planetary Gear Motors For Solar Trackers

  • SDE5 Self Lock Dual Axis Slew Drive Gearbox With Electric Planetary Gear Motors For Solar Trackers
  • SDE5 Self Lock Dual Axis Slew Drive Gearbox With Electric Planetary Gear Motors For Solar Trackers
SDE5 Self Lock Dual Axis Slew Drive Gearbox With Electric Planetary Gear Motors For Solar Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE5"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo, QT Model: SDE 5
Gear Ratio: 37:1 Rated Output Torque: 800 Nm
Holding Torque: 6000 Nm Tilting Torque: 9200 Nm
Efficiency: 40% Standard Color: RAL 9006
Backlash: Less Than 0.1 Degree Rotating Type: Two Axis
High Light:

worm gear slew drive

,

slewing ring gear

SDE5 Self Lock Dual Axis Slew Drive Gearbox With Electric Planetary Gear Motors For Solar Trackers



Description



The performance of slewing drives ranges from 6kNm to 220kNm of holding torque, 200Nm to 63kNm of output torque, 500Nm to 271kNm of overturning moment load capacity, and gearbox reduction ratios of 30:1 up to 156,600:1. The mounting can be done horizontally, vertically, or across a combination of multiple axes.



VE series slewing drives are advised to mount the slewing drives referring to attached drawing upside in solar applications for better protection.



SE series slewing drives is advised to mount the slewing drives upside down on the azimuth axis in solar applications for better protection and add protection for the elevation axis.



SDE series slewing drives are mounted of two directions.



Advantages



1. Strong overturning moment based on slewing ring

2. Adopt enveloping worm drive

3. Drive larger load for using multi tooth contact

4. Better static self-locking function



Technical Data of SDE Slewing Drive



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705
