Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SDE3 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | 3 Inch | Gear Ratio: | 31:1 |
|---|---|---|---|
| Efficiency: | 40% | Type: | Dual Axis |
| Application: | Solar Tracker | OEM Service: | Available |
| Place Of Origin: | Changzhou, China | Driver: | 12/24V DC |
| High Light: | slew drive motor,slewing ring gear |
||

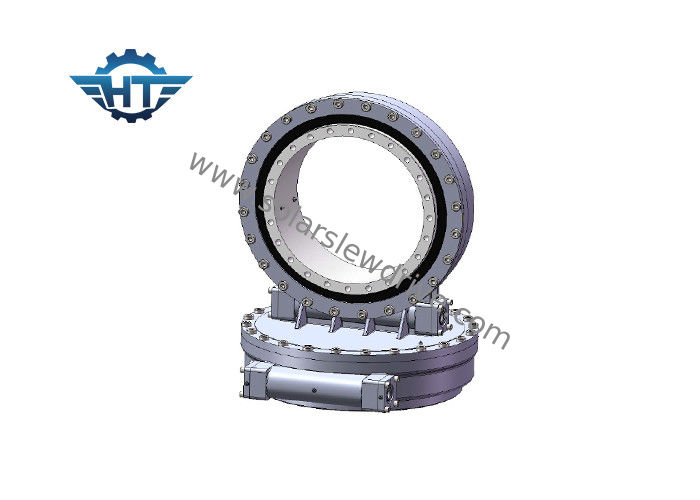

SDE Series Dual Axis Slew Drive Gearbox With Hydraulic Planetary Gearbox For Solar Power Plant
Product Description
There are many applications in which the slewing drive can be utilized, primarily because it is perfect for applications that require both load-holding power and rotational torque strength.
We have a wide range of slewing drive with output torque ranges from 221 lbf.ft to 15800 lbf.ft.
Slewing rings with integral worm shafts are becoming increasingly popular due to the simplicity of installation and are used in truck mounted cranes, small wind turbines, access platforms, turntables, solar tracking devices, satellite communication systems, and simple materials handling devices. High precision and zero backlash units are similarly applied in specific projects. In addition, we can offer various electric and hydraulic motors and gearboxes to match.
Specifications of SDE Slewing Drive
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 21kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 32kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 54kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 88kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 157 kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 214kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 315kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 481kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 682 kg |
Applications
Typical slewing drive applications include but are not limited to: solar trackers, wind turbines, man lifts, hydraulic machinery, telescopic handles, diggers, lifts, cranes, drilling equipment, military equipment, robotic system.
