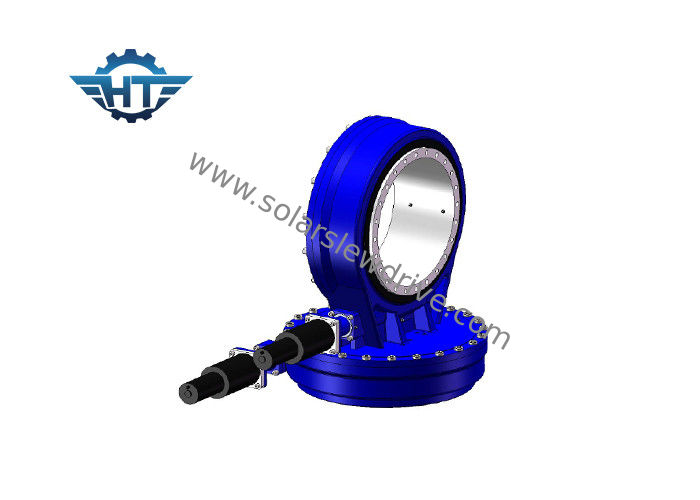

ZSDE Slew Drive Gearbox, Small Backlash With Nema For Solar Plant And Satellite Antenna

ZSDE Slew Drive Gearbox, Small Backlash With Nema For Solar Plant And Satellite Antenna

  • ZSDE Slew Drive Gearbox, Small Backlash With Nema For Solar Plant And Satellite Antenna
  • ZSDE Slew Drive Gearbox, Small Backlash With Nema For Solar Plant And Satellite Antenna
ZSDE Slew Drive Gearbox, Small Backlash With Nema For Solar Plant And Satellite Antenna
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE5
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 5 Inch Gear Ratio: 37:1
Efficiency: 40% Type: Two Directions Mounted
Application: Dual Axis Solar Trackers OEM Service: Available
Place Of Origin: Changzhou, China Driver: Stepper Motors Or 12/24vdc Motors
High Light:

slew drive motor

,

slewing ring gear

ZSDE Slew Drive Gearbox, Small Backlash With Nema For Solar Plant And Satellite Antenna



Description

Dual-axis slewing drive designing with two axis drive at the same time. It is more tooth contacting and double output torque than SE Series slewing drive.This product has a long history, process technology has been very mature now.

Advantages

1. Better protective performance
2. The oil seal can prevent the grease leaking effectively
3. The framework oil seal keeps shape and tension and guarantees the continuous and effective running of transmission part.
4. The oil seal is high heat-resisting and wear-resisting performance.



ZSDE Slew Drive Gearbox, Small Backlash With Nema For Solar Plant And Satellite Antenna 0

SDE Model Performance Parameters


SDE Model Performance Parameters
Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 21kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 32kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 54kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 88kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 157 kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 214kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 315kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 481kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 682 kg
