Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE 9 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Type: | Enclosed | Application: | Construction Machinery |
|---|---|---|---|
| Driver: | Hydraulic Motor | IP Grade: | IP66 |
| Color: | As Requested | Effciency: | 40% |
| Model: | VE 9" | Ratio: | 61:1 |
| High Light: | solar tracker drive,slewing gear |
||
Product Description

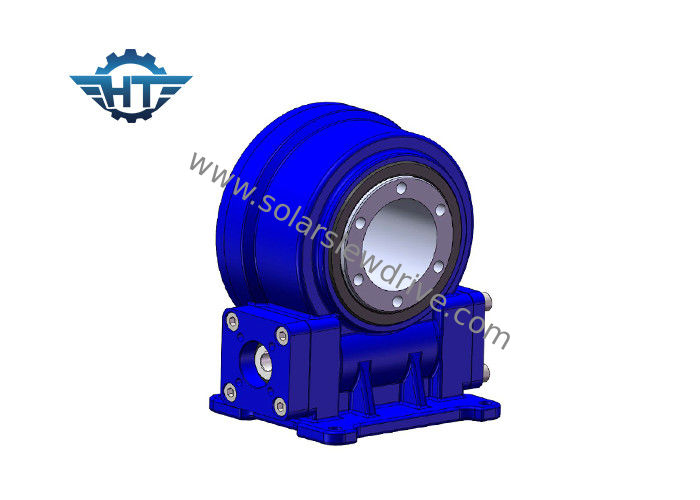

Slewing Drive have many types such as enclosed type, open housing type, vertical type, dual axis type, high precision type, worm drive type etc. slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.
| Model: | VE9 | Place of Origin | Changzhou,China |
| Brand | HANGTUO | Type | Enclosed |
| Material | 42CrMo,50Mn | Output Torque | 4300 N.m |
| Tilting Moment Torque | 16 K N.m | Holding Torque | 27 K N.m |
| Static Axial Rating | 60 KN | Static Radial Rating | 130 KN |
| Dynamic Axial Rating | 30 KN | Dynamic Radial Rating | 65 KN |
| Gear Ratio | 37:1 | Efficiency | 40% |
Applications
The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
SDE Dual-Axis Positioner Specifications
Related Products
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (N.m) | TiltingTorque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Effeciency | Precision (degree) | IP | Working Temp.(℃) | Self-locking | Weight (kg) |
| 3" | 600 | 5800 | 2100 | 3.6 | 15 | 31:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 12kg |
| 5" | 800 | 9200 | 5000 | 16 | 27 | 37:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 18kg |
| 6" | 2250 | 20400 | 11200 | 50 | 80 | 51:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 28kg |
| 7" | 1750 | 13200 | 7000 | 34 | 58 | 57:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 32kg |
| 9" | 4300 | 27200 | 16000 | 60 | 130 | 61:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 52kg |
| 12" | 5600 | 40560 | 25000 | 77 | 190 | 78:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 65kg |
| 14" | 6750 | 44200 | 48000 | 110 | 230 | 85:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 88 kg |
| 17" | 9460 | 53040 | 67000 | 142 | 390 | 102:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 135 kg |
| 21" | 16000 | 65000 | 89000 | 337 | 640 | 125:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 192 kg |
| 25" | 21450 | 89000 | 112000 | 476 | 950 | 150:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 251 kg |
