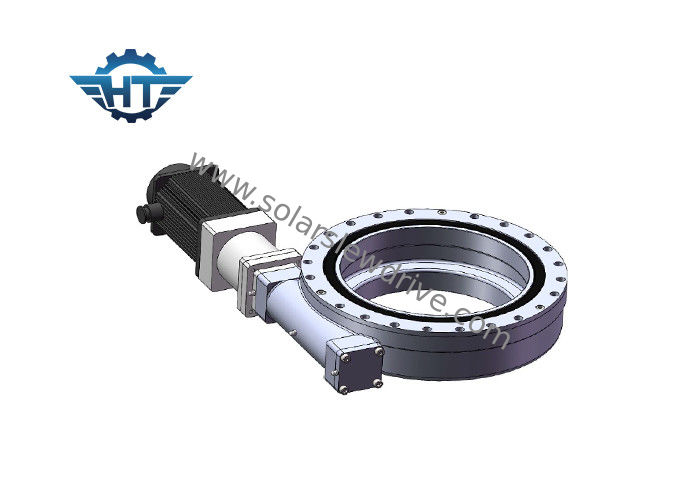

High Speed Or Low Speed SE12 Hydraulic Slew Drive With Different Ratios For Marine / Harbor Cranes

High Speed Or Low Speed SE12 Hydraulic Slew Drive With Different Ratios For Marine / Harbor Cranes

    • High Speed Or Low Speed SE12 Hydraulic Slew Drive With Different Ratios For Marine / Harbor Cranes
  • High Speed Or Low Speed SE12 Hydraulic Slew Drive With Different Ratios For Marine / Harbor Cranes

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Type: Enclosed Application: Industrial
    Driver: Hydraulic Motor IP Grade: IP66, IP65
    Color: As Requested Effciency: 40%
    Backlash: 0.1 Degree Model: SE12"
    High Light:

    hydraulic slew motor

    ,

    slewing gear

    Product Description



    Product Name: SE12 Slewing Drive

    Gear Ratio: 78:1

    Output Torque: 5600 N.m ; 4132.8 lbf.ft

    Tilting Moment Torque: 54400 N.m ; 40147.2 lbf.ft

    Holding Torque: 40560 N.m ; 29933.28 lbf.ft

    Axial Rating: 480 kN ; 108000 lbf

    Radial Rating: 190 kN ; 42750 lbf

    Motor Option: 24V DC Motor ; 380V/220V AC Motor ; Stepper Motor ; Brushless Motor

    Products Style Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower

    Application Feature Solar Tracking System, Industurial



    Features



    1. Excellent backholding torque to ensure the safety

    2. High precision to ensure a stable reflector

    3. High IP rating to improve service life in outdoor comlicated conditions



    Hangtuo‘s slewing drive is composed of the housing, slewing bearing, sealing, enveloping worm with some completed spare parts. We can also produce the Electronic motor and Hydraulic motor used for slewing drives, which can moves for clockwise direction and counter clockwise direction rotation.



    Advantage



    1. Strong overturning moment based on slewing ring

    2. Adopt enveloping worm drive

    3. Drive larger load for using multi tooth contact

    4. Better static self-locking function
