IP 66 Enclosed Housing Feature Slewing Bearing With Hydraulic Gear Motor For Man Lifts And Automotive Lifts

IP 66 Enclosed Housing Feature Slewing Bearing With Hydraulic Gear Motor For Man Lifts And Automotive Lifts

  • IP 66 Enclosed Housing Feature Slewing Bearing With Hydraulic Gear Motor For Man Lifts And Automotive Lifts
IP 66 Enclosed Housing Feature Slewing Bearing With Hydraulic Gear Motor For Man Lifts And Automotive Lifts
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE5
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Type: Enclosed Application: Solar Energy
Driver: Hydraulic Motor IP Grade: IP66
Color: As Requested Effciency: 40%
Backlash: 0.1 Degree Model: SE5"
High Light:

solar tracker drive

,

slewing gear

Slew drive manufacturers with planetary gearbox or hydraulic gearbox

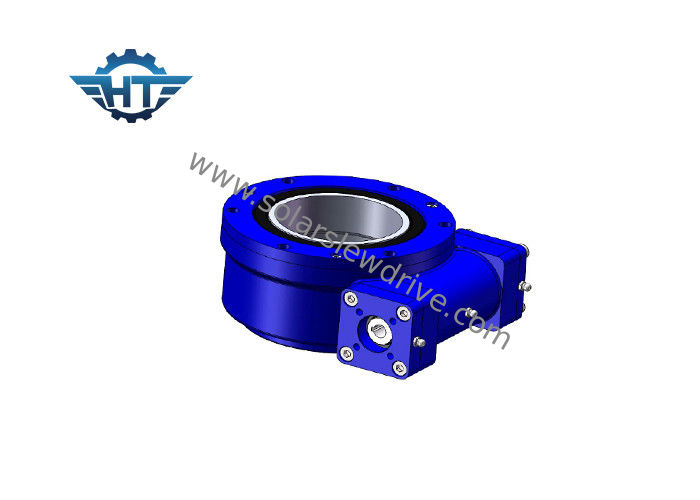

Product Name: SE5 Slewing Drive

Output Torque: 600 N.m ; 442.5 lbf.ft

Tilting Moment Torque 6000N.m ; 4425 lbf.ft

Holding Torque: 9200N.m ; 6785 lbf.ft

Axial Rating: 22 kN ; 4945.6 lbf

Radial Rating 12 kN ; 2697.6 lbf

Motor Option: 24V DC Motor ; 380V/220V AC Motor ; Stepper Motor ; Brushless Motor

Products Style Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower

Application Feature Solar Tracking System, Industurial



Our slewing drives come in a variety of model sizes from 1 inch to 25 inches, performance ranges from 0.3 to 21 kNm. We also have slewing drives of different backlash. The drives are well suited for applications that require both load holding and rotational torque from the same gear box. They can also be made with dual axes of rotation, (turning axes at the same time) or with dual drives on the same axis, (two worm threads driving the same ring gear in one axis), and can be mounted vertically, horizontally or both.



Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
