Place of Origin: | China |
Brand Name: | HangTuo |
Certification: | CE, ISO9001 |
Model Number: | SE7 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 280~504 / pc |
Packaging Details: | plywood box |
Delivery Time: | 15~45 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Gear Ratio: | 57:1 | Efficiency: | 40% |
---|---|---|---|
Type: | Enclosed | Application: | Construction Machinery |
OEM Service: | Available | Driver: | Hydraulic Motor |
IP Grade: | IP66 | Color: | As Requested |
High Light: | hydraulic slew motor,solar tracker drive |
Description

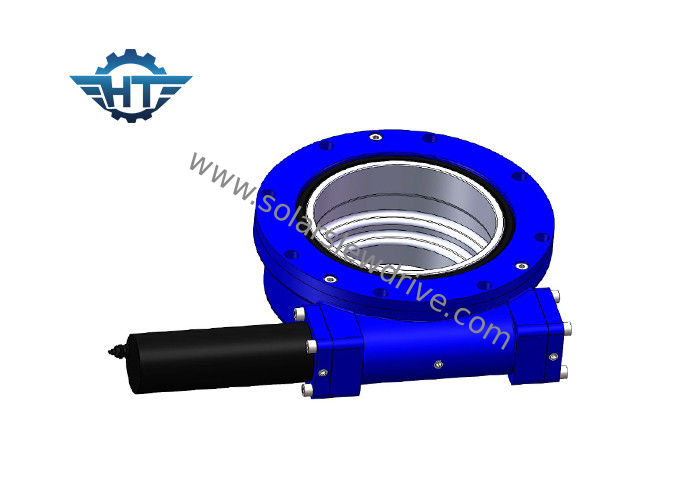

Slew drives are an all-in-one unit comprised of geared slew ring, drive gear, housing, and motor (electric or hydraulic). It is designed for axial force, radial force and moment loading. Our slew drives are powered with hour glass worm technology for increased load handling, efficiency and accuracy.
Slewing drives are widely used in construction machinery, especially in cranes.
Careful design of the slew drive is a major contributor to the crane's high productivity. This product is ideal for use with high torque hydraulic motor or geared electric motors.
SE Performance Data
Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
N.m | N.m | N.m | kN | kN | degree | Yes | kg | |||
9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 |
12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 |
14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62 |
17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85 |
21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141 |
25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182 |
Key Features
1. An unlimited rotating angle and range
2. Provide the most efficient transmission of high power and torque possible
3. Completely enclosed and sealed housing withstands harsh environments and increases safety
Motor Selection
Optional Items: Brushed DC motors (12V/24V/48V) with or without hall sensors, brushless DC gear motors, AC Motor(220V/380V), Encoder.
