Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE 7 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | 7 Inch | Gear Ratio: | 102:1 |
|---|---|---|---|
| Efficiency: | 40% | Type: | Horizontal Installed |
| Application: | Solar Tracking System | OEM Service: | Available |
| Driver: | Hydraulic Motors, AC Motors, DC Motors | IP Grade: | IP66 |
| Color: | As Requested | Backlash: | Less Than 0.1 Degree |
| High Light: | hydraulic slew motor,slewing gear |
||
Description

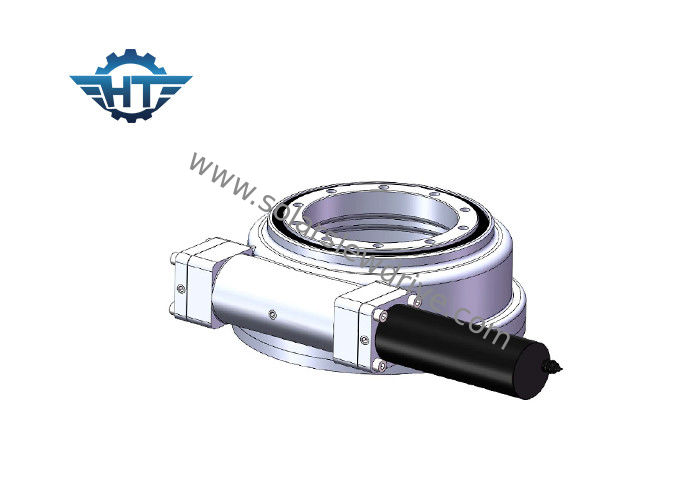

Changzhou Hangtuo’s slewing drives are of high quality.
They are enclosed housing slew drives with IP66 enclosure protection level. It is designed with an hourglass worm shaft with 5 teeth in contact between the slew ring and the worm shaft. This design offers a very solid back holding torque capacity for the heavy loads.
SE Performance Data
| Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | N.m | kN | kN | degree | Yes | kg | |||
| 1" | 31:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3" | 31:1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | Yes | 9 |
| 5" | 37:1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 14 |
| 7" | 57:1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 23 |
| 9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 |
| 12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 |
| 14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62 |
| 17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85 |
| 21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141 |
| 25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182 |
Advantages
1. Higher IP grade, better protective level
2. The framework oil seal keeps shape and tension and guarantees the continuous and effective running of transmission part.
3. The oil seal is high heat-resisting and wear-resisting performance.
Additional Information
| Min. Order Quantity | 5 units, sample order available |
| Port | China seaport ningbo/shanghai |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | Lead time 20-40 days |
| Packaging Details | Wooden case free from fumigation |
