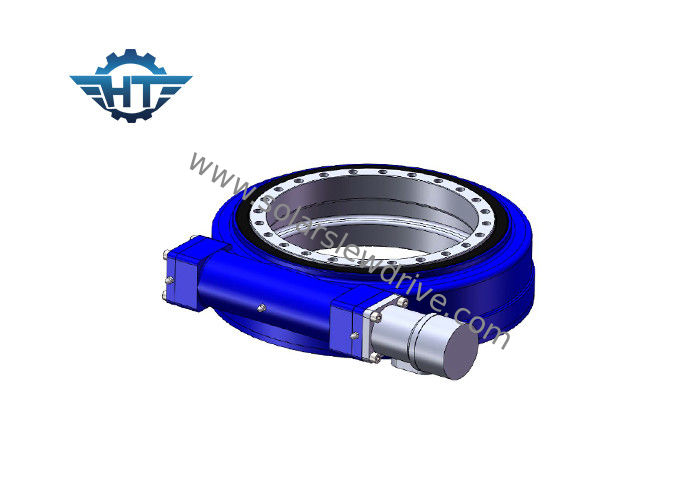

SE14 Gear Ratio 85 / 1 Hydraulic Slew Drive With Big Load For Cranes And Aerial Platform Trucks

SE14 Gear Ratio 85 / 1 Hydraulic Slew Drive With Big Load For Cranes And Aerial Platform Trucks

    • SE14 Gear Ratio 85 / 1 Hydraulic Slew Drive With Big Load For Cranes And Aerial Platform Trucks
  • SE14 Gear Ratio 85 / 1 Hydraulic Slew Drive With Big Load For Cranes And Aerial Platform Trucks

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE14

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: 14 Inch Gear Ratio: 85:1
    Efficiency: 40% Type: Horizontal Series
    Application: Cranes OEM Service: Available
    Place Of Origin: Changzhou, China Driver: Hydraulic Motors
    High Light:

    solar tracker drive

    ,

    slewing gear

    Product Description



    The hydraulic motors with wide range of types is specifically designed for slewing ring drives which could be perfectly employed on tower cranes, shipboard and harbour cranes, and wind generators and as steering drive on ship propulsion systems. They can be used in all applications where high load and accurate positioning is called for. They are suitable for hard working outdoor conditions in a safety and effective way.



    Application scope

    Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.



    Performance Table of SE14



    Model horizontal 14 inch slewing drive
    Ratio 85:1
    IP Grade IP66
    Rated Output Torque 44 kNm
    Tilting Torque 135 kNm
    Axial Load 680 kN
    Radial Load 230 kN
    Holding Torque 68 kNm
    Efficiency 40%
    Precision ≤0.1 °
    Self-locking Yes
    Weight 62 kg
    Working Temperature -30~+120 ℃
    Drive Method Hydraulic system



    Recommended slewing drive



    Enclosed housing slewing drive SE1 SE3 SE5 SE7 SE9 SE12 SE14 SE21
    Precise enclosed housing slewing drive ZE3 ZE5 ZE7 ZE9
    Worm gear slewing drive WE1 WE3 WE5 WE7 WE9
    Dual axis slewing drives SDE3 ZDE3 SDE5 ZDE5 SDE7 ZDE7
    Vertical enclosed slewing Drive VE3 VE5 VE6 VE7 VE9 VE12
