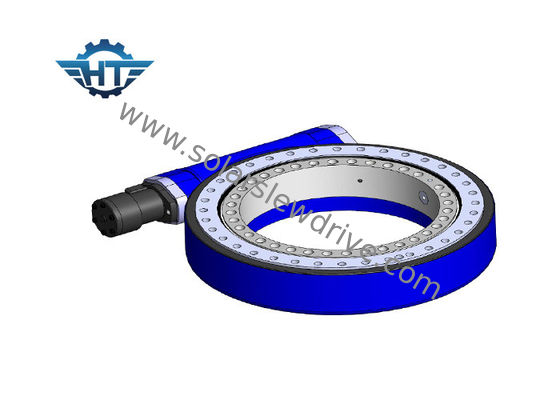

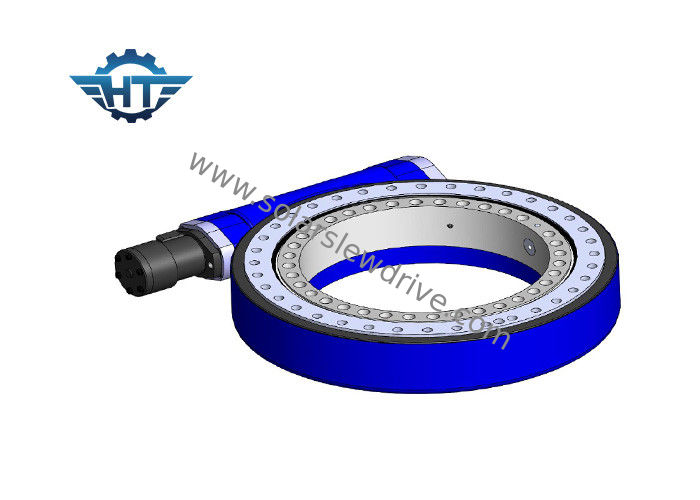

Tracking Sun Solar Slewing Ring Drive With 24V Stepper Motor And Encoders For Solar Trackers

Tracking Sun Solar Slewing Ring Drive With 24V Stepper Motor And Encoders For Solar Trackers

    • Tracking Sun Solar Slewing Ring Drive With 24V Stepper Motor And Encoders For Solar Trackers
    • Tracking Sun Solar Slewing Ring Drive With 24V Stepper Motor And Encoders For Solar Trackers
  • Tracking Sun Solar Slewing Ring Drive With 24V Stepper Motor And Encoders For Solar Trackers

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE9

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: 9 Inch Gear Ratio: 61:1
    Efficiency: 40% Type: Horizontal Series
    Application: Solar Energy OEM Service: Available
    Place Of Origin: Changzhou, China Driver: 24vdc Motors
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive

    Description

    What is a Slewing Drive?

    A slewing drive (or slew drive for short) is a complete, ready to install system that consists of a ball or roller slewing ring (bearing), worm, and completely enclosed housing. It can be customized with hydraulic or electric planetary gearboxes with selectable IP grade based on different applications and customers’ demand.

    It has the features of corrosion protection, high load, and high precision.

    Worm gear slewing is widely applied in the relatively rotary parts of machinery and solar energy field such as solar tracking system, rotary chassis of aerial working machinery, truck crane, rock drill, drilling machine, grasping wood machine, code molding machine.



    Key Features

    1. An unlimited rotating angle and range

    2. Provide the most efficient transmission of high power and torque possible

    3. Completely enclosed and sealed housing withstands harsh environments and increases safety



    Parameters of SE Series

    Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load(kN) Efficiency Precision (°) Self-locking Weight (kg)
    1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
    3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
    5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
    7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
    9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
    12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
    14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
    17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
    21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
    25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



    Motor Selection
    Optional Items: Brushed DC motors (12V/24V/48V) with or without hall sensors, brushless DC gear motors, AC Motor(220V/380V), Encoder.



    Packaging and Shipping

    Inner Packaging: anti-rust plastic film ; vacuum plastic bags.

    Outer Packaging: hard carton; wooden case ; wood pallet.

    Shipping Term: by express; by air; by land; by sea.

    For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.

    If in bulk order in the future, we recommend ship by sea.

    Note:

    Express: door to door, just need to pay the import tax if required by the custom.

    By air or by sea: factory to destination airport/sea port, need pay destination fee charged by the airport(the destination fee is always charged by per B/L regardless of the package is big, small, heavy or light, in gerneral 200~400 USD per cargo) and import tax if required by the custom.

    By train: sometimes the shipping price is the same as sea but taking less shipping time than sea, we will take this shipping way into consideration if the goods are in urgent need by our clients.
