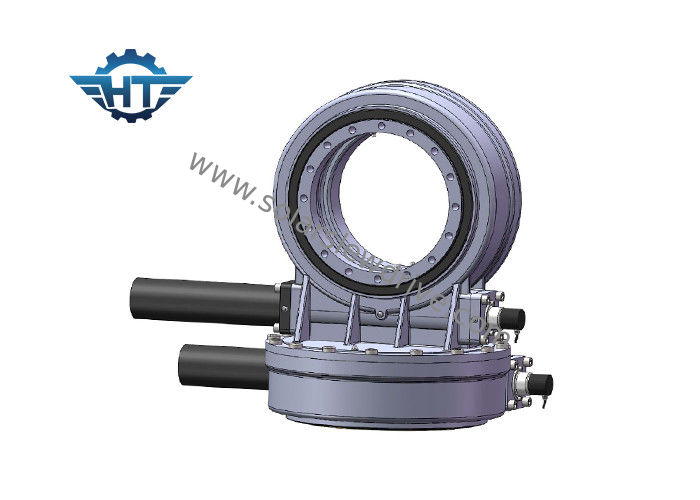

SDE / PDE 3 Inch Worm Gear Slew Drive High Precision For Dual Axis Solar Trackers

SDE / PDE 3 Inch Worm Gear Slew Drive High Precision For Dual Axis Solar Trackers

    • SDE / PDE 3 Inch Worm Gear Slew Drive High Precision For Dual Axis Solar Trackers
    • SDE / PDE 3 Inch Worm Gear Slew Drive High Precision For Dual Axis Solar Trackers
  • SDE / PDE 3 Inch Worm Gear Slew Drive High Precision For Dual Axis Solar Trackers

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 385 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: 3 Inch Gear Ratio: 31
    Efficiency: 40% Type: Dual Axis
    Application: Solar Tracker OEM Service: Available
    Place Of Origin: Changzhou, China Driver: 12/24vdc Motors
    High Light:

    solar tracker drive

    ,

    slewing gear

    SDE / PDE 3 Inch Worm Gear Slew Drive High Precision For Dual Axis Solar Trackers





    Description

    Solar tracker comprises of several parts including sun tracking algorithm, control unit, positioning system, drive mechanism system, sensing devices, wind guard, tubes, and rods. Growing demand for energy supplemented by fluctuating fuel oil prices, increase in efficiency of solar panels by the use of solar trackers and increased product demand are expected to bolster the overall solar tracker market growth.

    Slewing drive is a main part in solar tracker. By adopting slewing bearing as its core component, slewing drive can bear axial force, radial force and tilting moment simultaneously.

    Dual axis solar tracking system is one of the applications of slewing drives.

    Features

    1. High backholding torque to improve the solar tracking system's safety
    2. Enveloping worm drive inside
    3. Multi tooth contact to ensure high load
    4. Self-locking function

    Dual axis slewing drives are used in dual axis solar trackers, heliostats, concentrated photovoltaics (CPV), and satellite antenna.

    By applying a dual axis slewing drives on a solar system, the panels will always be oriented towards the sun, no matter the season, time of the day or latitude of the regions. It can let the project owner gain more electricity capacity up to 40%. And thus more yield.

    Parameters of SDE slewing drives


    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision (°) Self-locking Weight (kg)
    3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
    5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
    7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
    8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
    9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
    12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
    14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
    17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
    21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
    25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



    Q&A



    1. How can i choose?

    Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.

    2. Could I take samples to test quality and market in advance?

    Sure, welcome to take samples to test our quality and service.



    3. What's the total cost for samples?

    Total sample cost= sample cost + freight

    We will give you the best shipping cost after you choose the suitable gear motors



    4. How do you ship samples?

    Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex

    5. What's your minimum order quantity?

    10 sets after samples confirmed

    6. What's your delivery time?

    For standard samples: within 7days; for batch orders: within 25 days.
