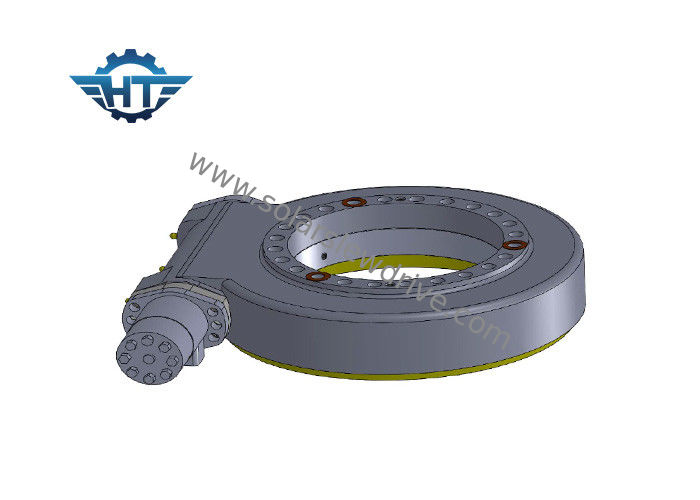

SE Series 3 Inch 31 / 1 Gear Ratio With 12 VDC Brushed Motor For Oblique Single Trackers

SE Series 3 Inch 31 / 1 Gear Ratio With 12 VDC Brushed Motor For Oblique Single Trackers

    • SE Series 3 Inch 31 / 1 Gear Ratio With 12 VDC Brushed Motor For Oblique Single Trackers
    • SE Series 3 Inch 31 / 1 Gear Ratio With 12 VDC Brushed Motor For Oblique Single Trackers
  • SE Series 3 Inch 31 / 1 Gear Ratio With 12 VDC Brushed Motor For Oblique Single Trackers

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: 1~25 Inch Gear Ratio: 31~150
    Efficiency: 40% Type: Single Axis
    Application: Solar Tracking System, Construction Machinery OEM Service: Available
    Place Of Origin: Changzhou, China Driver: 12/24vdc Motors, Servo Motors
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive

    SE Series 3 Inch 31 / 1 Gear Ratio With 12 VDC Brushed Motor For Oblique Single Trackers



    Description

    Material we can work on : 42CrMo, 50Mn, QT450
    Processing of gear: forging, machining, hobbing, milling, shaping , shaving, grinding, heat treatment.
    Heat Treatment: Nitriding.

    Parameters of SE Series


    Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load(kN) Efficiency Precision (°) Self-locking Weight (kg)
    1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
    3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
    5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
    7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
    9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
    12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
    14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
    17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
    21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
    25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



    Additional Information


    Min. Order Quantity 5 units, sample order available
    Port China seaport ningbo/shanghai
    Payment Terms L/C, T/T, Western Union
    Delivery Time Lead time 15-45 days
    Packaging Details Wooden case free from fumigation



    Customized Services


    1. Special design based on different applications and projects
    2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
    3. Different colors are available based on RAL code; our standard color is RAL 9006.



    Applicatons



    Slew Drive For Solar: it is designed in solar photovoltaic panel rotation and improves power generation efficiency. Single axis and dual axis solar tracking solutions are available.



    Slewing drive for solar tracking system application include solar Concentrator Solar Dish, CPV (Concentrated Photovoltaics), CSP (Concentrated solar power), solar parabolic trough, PV tracker



    For wind generators: Slewing drives are used to rotate the pedestal in wind turbines



    Slewing Drive for Construction Machinery Application: widely applied on mounted truck crane, aerial working platform, Dock Crane, Timber Grab

    For Industry Market: Automation/Assembly line, robotic arm



    For Satellite: slew drive can be used for space communications and global positioning systems in satellite dishes



    Q&A



    1. How can i choose?

    Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.

    2. Could I take samples to test quality and market in advance?

    Sure, welcome to take samples to test our quality and service.



    3. What's the total cost for samples?

    Total sample cost= sample cost + freight

    We will give you the best shipping cost after you choose the suitable gear motors



    4. How do you ship samples?

    Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex

    5. What's your minimum order quantity?

    10 sets after samples confirmed

    6. What's your delivery time?

    For standard samples: within 7days; for batch orders: within 25 days.
