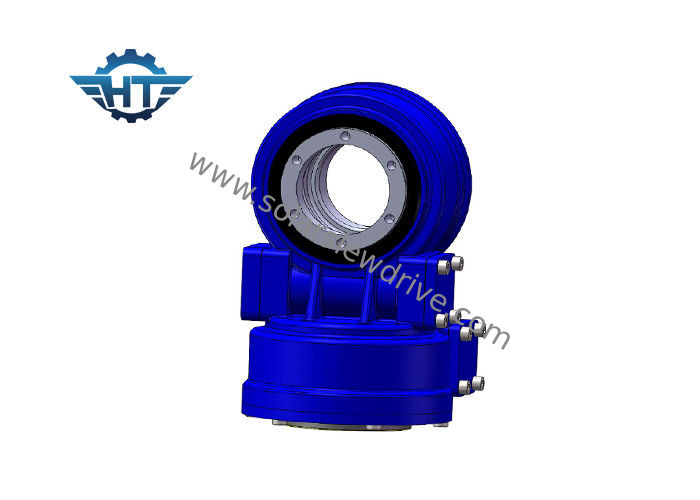

High Precision With Electric Motor And Encoder Slew Drive For Solar Tracking System

High Precision With Electric Motor And Encoder Slew Drive For Solar Tracking System

    • High Precision With Electric Motor And Encoder Slew Drive For Solar Tracking System
    • High Precision With Electric Motor And Encoder Slew Drive For Solar Tracking System
  • High Precision With Electric Motor And Encoder Slew Drive For Solar Tracking System

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: 5 Inch Gear Ratio: 37:1
    Efficiency: 40% Type: Two Directions Mounted
    Application: Dual Axis Solar Trackers OEM Service: Available
    Place Of Origin: Changzhou, China Driver: Stepper Motors Or 12/24vdc Motors
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive

    High Precision With Electric Motor And Encoder Slew Drive For Solar Tracking System





    Description



    Dual-axis slewing drive designing with two axis drive at the same time. It is more tooth contacting and double output torque than SE Series slewing drive.This product has a long history, process technology has been very mature now.



    Features



    1. high quality

    2. competitive price

    3. reliable reputation



    Gear Motor Options



    Electric and planetary gearboxes can be designed according to customer's requirement.Slewing drive has the advantage for saving space in facilities,max load capacity in a compact design,extensive lifespan, reduced maintenance costs.



    Parameters of SDE Series



    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
    3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
    5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
    7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
    9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
    12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
    14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
    17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
    21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
    25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



    Applications



    There are many applications where a rotary drive can be used, primary because it is well suited for applications that require load to maintain power and rotational torque.

    Typical swing drive applications include, but are not limited to: solar tracker, wind turbine, men's lift, hydraulic machinery, telehandler, excavator , lift, cranes, drilling equipment, military equipment.



    Q&A



    1. How can i choose?

    Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.

    2. Could I take samples to test quality and market in advance?

    Sure, welcome to take samples to test our quality and service.

    3. What's the total cost for samples?

    Total sample cost= sample cost + freight

    We will give you the best shipping cost after you choose the suitable gear motors

    4. How do you ship samples?

    Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex

    5. What's your minimum order quantity?

    10 sets after samples confirmed

    6. What's your delivery time?

    For standard samples: within 7days; for batch orders: within 25 days.
