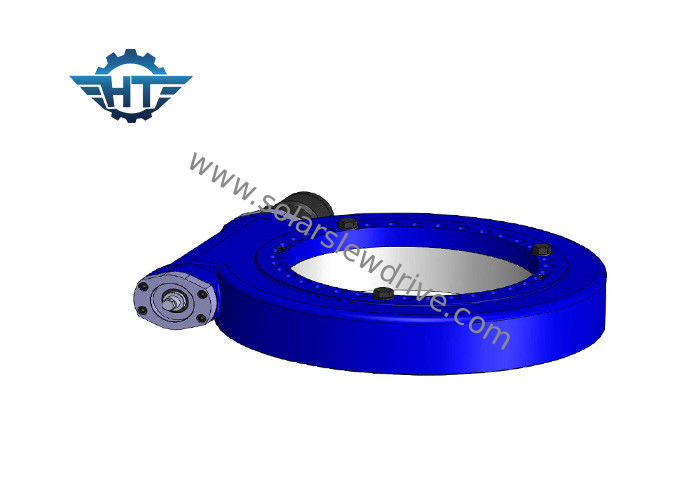

SE Series Horizontal Slew Drive Gearbox For Solar Panel Track Towards Sun Automatically

SE Series Horizontal Slew Drive Gearbox For Solar Panel Track Towards Sun Automatically

    • SE Series Horizontal Slew Drive Gearbox For Solar Panel Track Towards Sun Automatically
    • SE Series Horizontal Slew Drive Gearbox For Solar Panel Track Towards Sun Automatically
  • SE Series Horizontal Slew Drive Gearbox For Solar Panel Track Towards Sun Automatically

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: 1 Inch Gear Ratio: 31:1
    Efficiency: 40% Driver: Electric Motor
    Type: Single Axis Application: Solar Tracker
    OEM Service: Available Place Of Origin: Changzhou, China
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive

    SE Series Horizontal Slew Drive Gearbox For Solar Panel Track Towards Sun Automatically





    Description



    Due to the high gear ratio and the large surface contact between worm and worm gear, very high torque values can be transmitted by very small sized slew drives which means highest power density. Worm gear driven slew drives could be used in applications which demand of low speed and high torque such as solar trackers, concentrated heat power stations. When it is used in continuous rotation applications with high rotation speed is not permissible due to higher duty which will cause overheating inside the drives and failure to function.



    Specifications



    Model Number SE1
    Brand Name Hangtuo
    Gear Ratio 32:1
    Output Torque (Nm) 400
    Tilting Torque (Nm) 1000
    Holding Torque (Nm) 1800
    Weight (kgs) 6
    Axial Load (kN) 22
    Radial Load (kN) 12
    Working Temperature (℃) -30~+120
    Place Of Origin Changshu, China (Mainland)
    Inspect Full inspection
    Processing Forging/machining/coating/assembly
    Service 24 hours online


    Additional Information



    Min. Order Quantity 5 units, sample order available
    Port China seaport ningbo/shanghai
    Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time Lead time 20-40 days
    Packaging Details Wooden case free from fumigation



    Technical Parameters



    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
    1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
    3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
    5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
    7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
    9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
    12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
    14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
    17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
    21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
    25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



    Q&A



    1. How can i choose?

    Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.

    2. Could I take samples to test quality and market in advance?

    Sure, welcome to take samples to test our quality and service.



    3. What's the total cost for samples?

    Total sample cost= sample cost + freight

    We will give you the best shipping cost after you choose the suitable gear motors



    4. How do you ship samples?

    Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex

    5. What's your minimum order quantity?

    10 sets after samples confirmed

    6. What's your delivery time?

    For standard samples: within 7days; for batch orders: within 25 days.
