SDE3 31 / 1 Solar Slew Drive Vertical And Horizontal Mounted For Dual Axis Solar Trackers

SDE3 31 / 1 Solar Slew Drive Vertical And Horizontal Mounted For Dual Axis Solar Trackers

    • SDE3 31 / 1 Solar Slew Drive Vertical And Horizontal Mounted For Dual Axis Solar Trackers
    • SDE3 31 / 1 Solar Slew Drive Vertical And Horizontal Mounted For Dual Axis Solar Trackers
  • SDE3 31 / 1 Solar Slew Drive Vertical And Horizontal Mounted For Dual Axis Solar Trackers

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: 3 Inch Gear Ratio: 31:1
    Efficiency: 40% Driver: Electric Motor/hydraulic Motor/servo Motor
    Type: Two Directions Mounted Application: Solar Tracking System
    Precison: High OEM Service: Available
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive

    SDE3 31 / 1 Solar Slew Drive Vertical And Horizontal Mounted For Dual Axis Solar Trackers





    Description

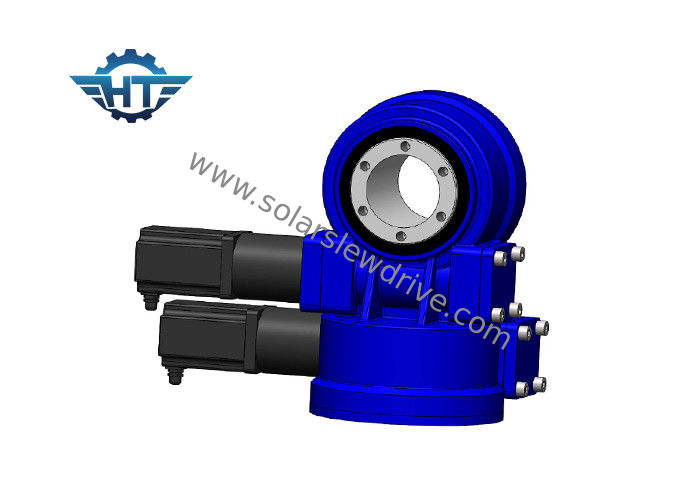

    SDE3 Slewing Drive For Dual-axis Solar Tracker
    Brand Name: HT
    Model Number: SDE3
    Condition: New
    After-sales Service Provided: Engineers available to service machinery overseas
    Output torque: 600 N.m
    Tilting moment torque: 1500 N.m
    Holding torque: 5800 N.m
    Axial rating: 10 KN
    Radial rating: 15 KN
    Gear Ratio: 31:1
    Tracking Precision: ≤ 0.1°
    Motor: 12V,24V, DC motor, 380V, 220V AC motor
    Net Weight: 25 Kg
    Delivery Time: sample in 15 days, batch order 15~45 days



    Features



    Applications

    The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
    SDE Dual-Axis Positioner Specifications

    Reliability

    SDE dual-axis slewing drives are assured for a 30-year field life of precise 3D positioning. SDE drives create an efficient and reliable solution in a single drive. We qualify all of our components and raw materials using standards set by ISO 9001, CE certifications to maximize field life.



    Advantages
    The azimuth & Elevation combined and enclosed designing can improve the tracking precision and power generation efficiency.
    FRB using combined designing achieved better rigidity, impact resistance stronger, able to withstand the harsh environment of the desert and others.
    Application:
    1) SDE series slewing drive widely used for relative rotation parts of the solar tracker.
    2) Dual axis tracker of solar PV and solar

    Characteristics & Advantages



    Performance
    Slew drives use patented hourglass worm technology to give maximum control and movement support. Our worm gears engage 5 to 11 teeth on the pitch line of the ring gear from the hourglass screw, which is higher tooth engagement than standard worms, giving the gearbox greater stability and strength. Learn more about hourglass technology.



    Technical Parameters



    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
    3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
    5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
    7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
    9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
    12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
    14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
    17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
    21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
    25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705
