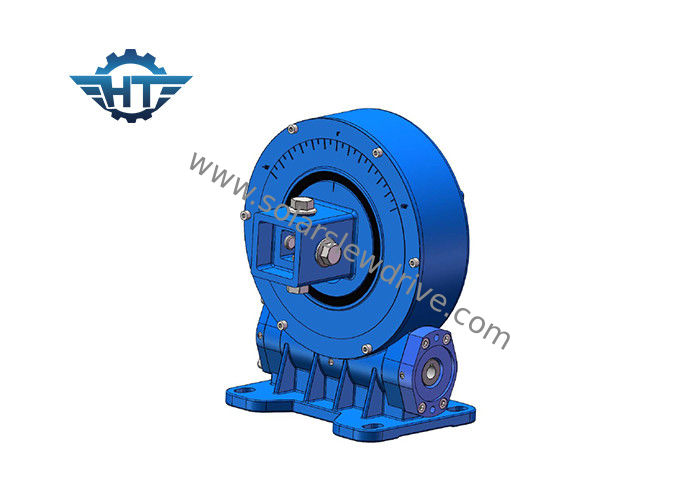

VE9 Vertical Mounted Solar Slew Drive With Output Torque 4300 Nm For Single Flat Trackers

VE9 Vertical Mounted Solar Slew Drive With Output Torque 4300 Nm For Single Flat Trackers

    • VE9 Vertical Mounted Solar Slew Drive With Output Torque 4300 Nm For Single Flat Trackers
    • VE9 Vertical Mounted Solar Slew Drive With Output Torque 4300 Nm For Single Flat Trackers
  • VE9 Vertical Mounted Solar Slew Drive With Output Torque 4300 Nm For Single Flat Trackers

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: VE9

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: 9 Inch Gear Ratio: 61:1
    Efficiency: 40% Driver: Electric Motor/hydraulic Motor/servo Motor
    Type: Vertical Mounted Application: Solar Tracking System
    Precison: High OEM Service: Available
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive

    VE9 Vertical Mounted Solar Slew Drive With Output Torque 4300 Nm For Single Flat Trackers


    Product Description

    Slewing Drive have many types such as enclosed type, open housing type, vertical type, dual axis type, high precision type, worm drive type etc. slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.


    Model:VE9Place of OriginChangzhou,China
    BrandHANGTUOTypeEnclosed
    Material42CrMo,50MnOutput Torque2250 N.m
    Tilting Moment Torque16 KN.mHolding Torque30.8 KN.m
    Static Axial Rating60 KNStatic Radial Rating130 KN
    Dynamic Axial Rating30 KNDynamic Radial Rating65 KN
    Gear Ratio61:1Efficiency40%


    Recommended Slewing Drives


    Enclosed housing slewing driveSE1SE3SE5SE7SE9SE12SE14SE21
    Precise enclosed housing slewing driveZE3ZE5ZE7ZE9
    Worm gear slewing driveWE1WE3WE5WE7WE9
    Dual axis slewing drivesSDE3ZDE3SDE5ZDE5SDE7ZDE7
    Vertical enclosed slewing DriveVE3VE5VE6VE7VE9VE12


    Applications

    solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.

    VE9 Vertical Mounted Solar Slew Drive With Output Torque 4300 Nm For Single Flat Trackers 0


    Packaging and Shipping



    Inner Packaging: anti-rust plastic film ; vacuum plastic bags.

    Outer Packaging: hard carton; wooden case ; wood pallet.

    Shipping Term: by express; by air; by land; by sea.



    For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.



    If in bulk order in the future, we recommend ship by sea.



    Note:



    Express: door to door, just need to pay the import tax if required by the custom.

    By air or by sea: factory to destination airport/sea port, need pay destination fee charged by the airport(the destination fee is always charged by per B/L regardless of the package is big, small, heavy or light, in gerneral 200~400 USD per cargo) and import tax if required by the custom.

    By train: sometimes the shipping price is the same as sea but taking less shipping time than sea, we will take this shipping way into consideration if the goods are in urgent need by our clients.
