SDE5 High Holding Torque Slew Drive Gearbox of Tooth Contact With Nema Motor For Solar Plant

SDE5 High Holding Torque Slew Drive Gearbox of Tooth Contact With Nema Motor For Solar Plant

  • SDE5 High Holding Torque Slew Drive Gearbox of Tooth Contact With Nema Motor For Solar Plant
  • SDE5 High Holding Torque Slew Drive Gearbox of Tooth Contact With Nema Motor For Solar Plant
SDE5 High Holding Torque Slew Drive Gearbox of Tooth Contact With Nema Motor For Solar Plant
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE5
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 5 Inch Gear Ratio: 37:1
Efficiency: 40% Precise: ≤0.1
Driver: Electric Motor Type: Vertical Single Axis
Application: Solar Tracker Selflocking: Yes
High Light:

hydraulic slew motor

,

slewing gear

SDE5 High Holding Torque Slew Drive Gearbox of Tooth Contact With Nema Motor For Solar Plant


Production Description

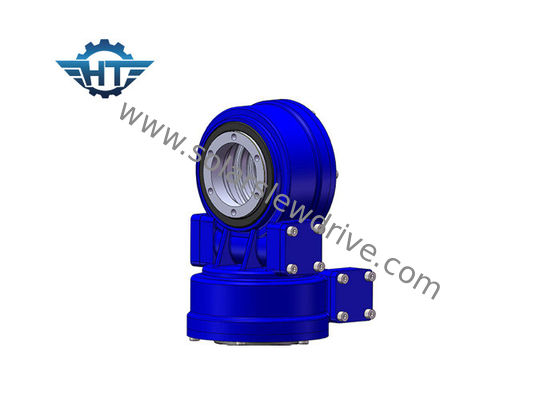

Model: SDE5
Place of Origin: Changzhou,China
Brand: HT
Type:Enclosed
Material:42CrMo,50Mn
Output Torque: 800 N.m
Tilting Moment Torque: 6000 N.m
Holding Torque: 9200 N.m
Static Axial Rating:16 KN
Static Radial Rating:27 KN
Dynamic Axial Rating:8 KN
Dynamic Radial Rating:14 KN
Gear Ratio: 37:1
Efficiency: 40%



Hangtuo‘s slewing drive is composed of the housing, slewing bearing, sealing, enveloping worm with some completed spare parts. We can also produce the Electronic motor and Hydraulic motor used for slewing drives, which can moves for clockwise direction and counter clockwise direction rotation.



Advantages



1. Strong overturning moment based on slewing ring

2. Adopt enveloping worm drive

3. Drive larger load for using multi tooth contact

4. Better static self-locking function



SDE5 High Holding Torque Slew Drive Gearbox of Tooth Contact With Nema Motor For Solar Plant 0



Parameters of SDE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.



There is usually single axis type; dual axis type, vertical type and dual worm type from 3 to 25 inch, for detail pls contact us for the sales drawing.
