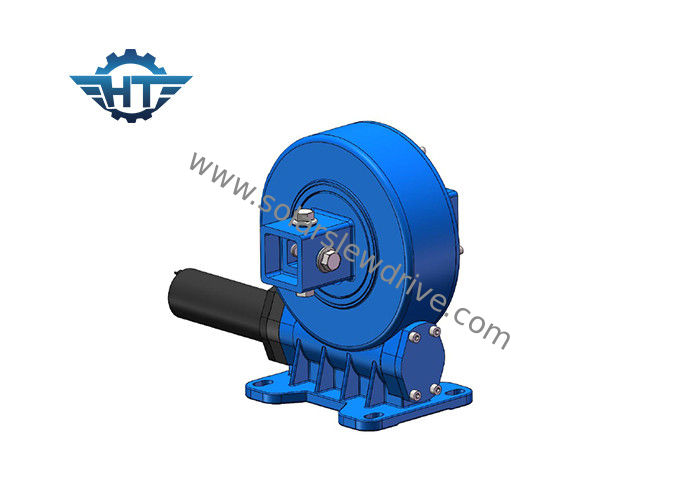

VE9 Efficiency 40% Solar Slew Drive High Torque For Industrial Applications

VE9 Efficiency 40% Solar Slew Drive High Torque For Industrial Applications

    • VE9 Efficiency 40% Solar Slew Drive High Torque For Industrial Applications
    • VE9 Efficiency 40% Solar Slew Drive High Torque For Industrial Applications
  • VE9 Efficiency 40% Solar Slew Drive High Torque For Industrial Applications

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: VE9

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: 9 Inch Gear Ratio: 61:1
    Efficiency: 40% Precision: Less Than 0.1
    Driver: Electric Motor Type: Vertical Single Axis
    Application: Solar Plant Color: As Requested
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive

    VE9 Efficiency 40% Solar Slew Drive High Torque For Industrial Applications



    Description



    Our slewing drive has features of reverse self-locking because of worm gear self-locking characteristics. This feature greatly enhances the stability of the host operating and safety factor. Compared to the traditional swing products, slewing drive gearbox is easy to install, easy to maintain, and saves considerable installation space.



    VE9 Efficiency 40% Solar Slew Drive High Torque For Industrial Applications 0



    Parameters of VE slewing drives



    Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
    3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
    5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
    7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
    8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
    9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
    12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
    14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
    17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
    21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
    25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



    Advantages



    1. Strong overturning moment based on slewing ring

    2. Adopt enveloping worm drive

    3. Drive larger load for using multi tooth contact

    4. Better static self-locking function



    Worm Drive—higher wear-resistance of worm gear drive, which can load strong output torque and tilting moment torque with the well performance of stability and reliability. The worm drive is also available for higher tracking precise field.
