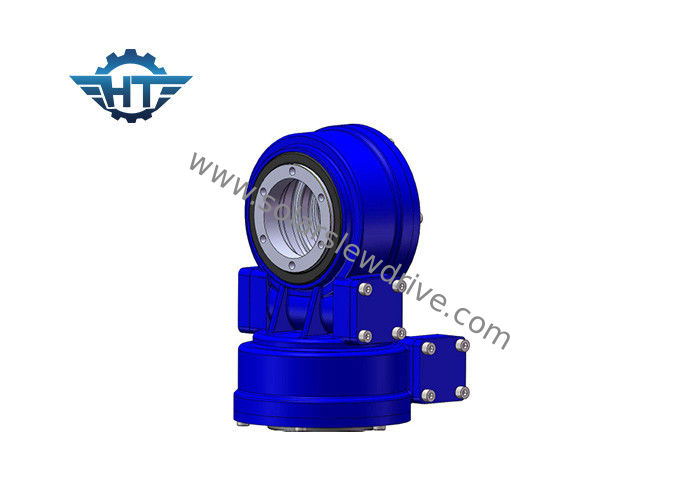

SDE5 / SDE7 Dual Axis Solar Slew Drive Backlash 0.1 Degree For Dual Axis Solar Trackers

SDE5 / SDE7 Dual Axis Solar Slew Drive Backlash 0.1 Degree For Dual Axis Solar Trackers

  • SDE5 / SDE7 Dual Axis Solar Slew Drive Backlash 0.1 Degree For Dual Axis Solar Trackers
  • SDE5 / SDE7 Dual Axis Solar Slew Drive Backlash 0.1 Degree For Dual Axis Solar Trackers
SDE5 / SDE7 Dual Axis Solar Slew Drive Backlash 0.1 Degree For Dual Axis Solar Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE7
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 7 Inch Gear Ratio: 57:1
Efficiency: 40% Precise: Less Than 0.1
Driver: Electric Motor Type: Dual Axis
Application: Solar Tracker Color: As Resquesed
High Light:

hydraulic slew motor

,

slewing gear

SDE5 / SDE7 Dual Axis Solar Slew Drive Backlash 0.1 Degree For Dual Axis Solar Trackers



Introduction



Slewing drives are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.



Features



1. High backholding torque to improve the solar tracking system's safety

2. Enveloping worm drive inside

3. Multi tooth contact to ensure high load

4. Self-locking function

SDE5 / SDE7 Dual Axis Solar Slew Drive Backlash 0.1 Degree For Dual Axis Solar Trackers 0



Technical Data



Product Name SDE7 Slewing drive with 43Nm 24Vdc gear motors
Output Torque 2000 Nm
Tilting Moment Torque 7500 Nm
Holding Torque 13200 Nm
Axial Load 34 kN
Radial Rating 58 kN
Motor Alternatives 380V/220V AC Motor ; Stepper Motor ; Brushless Motor
Products Style Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower
Application Feature Solar Tracking System, Industrial Machinery
