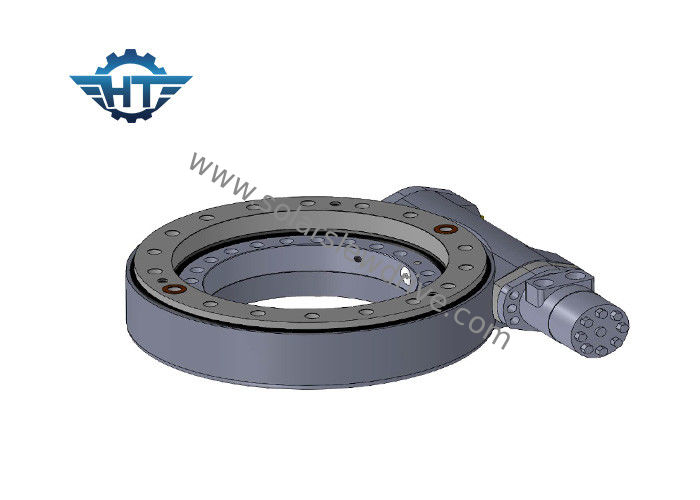

SE21 High Torque Solar Slew Drive With Hydraulic Slew Motor For Solar Trackers

SE21 High Torque Solar Slew Drive With Hydraulic Slew Motor For Solar Trackers

    • SE21 High Torque Solar Slew Drive With Hydraulic Slew Motor For Solar Trackers
    • SE21 High Torque Solar Slew Drive With Hydraulic Slew Motor For Solar Trackers
  • SE21 High Torque Solar Slew Drive With Hydraulic Slew Motor For Solar Trackers

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE21

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Model: 21 Inch
    Gear Ratio: 125:1 Efficiency: 40%
    Precise: Less Than 0.1 Driver: Hydraulic Motor
    Color: Requested Type: Single Axis
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive

    SE21 High Torque Solar Slew Drive With Hydraulic Slew Motor For Solar Trackers



    Description



    The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis or in multiple axes together. Slewing drives are made by manufacturing gearing, bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox.e.



    Zero backlash slewing drive is a special slewing drive with its gear and worm having a perfect mesh and also has reasonable gaps of lubrication and operating heating.



    Advantages



    1. Rotation 360 degrees

    2. Connection of a driving motor from the left or right side

    3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory

    4. Grease had been filled before factory

    4. Simple installation and low maintenance

    5. Rational space utilization

    6. The gear is self-locking; therefore a brake is not necessary

    7. Easy and fluent method of starting and stopping

    8. High tilting torque, suitable for horizontal installation


    Parameters of SE Series



    Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
    1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
    3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
    5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
    7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
    9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
    12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
    14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
    17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
    21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
    25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204
