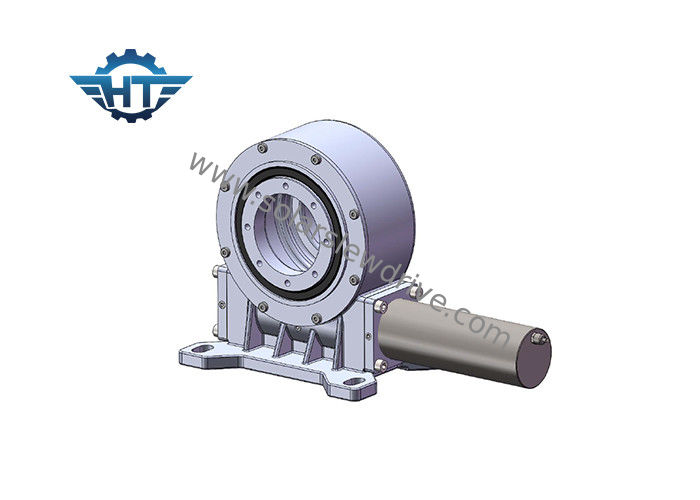

Vertical Mounted Enclosed Housing Worm Drive Gearbox With High Precision For Fresnel And Parabolic

Vertical Mounted Enclosed Housing Worm Drive Gearbox With High Precision For Fresnel And Parabolic

    • Vertical Mounted Enclosed Housing Worm Drive Gearbox With High Precision For Fresnel And Parabolic
  • Vertical Mounted Enclosed Housing Worm Drive Gearbox With High Precision For Fresnel And Parabolic

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: ZVE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: 3~7 Inch Gear Ratio: 31:1, 37:1, 57:1
    Application: Parabolic Thermal Place Of Origin: Changzhou, China
    Driver: Stepper Motor Installation: Vertical
    Color: As Requested Backlash: Less Than 0.03 Degree
    High Light:

    worm drive gearbox

    ,

    worm gear motor

    Advantages



    1. Rotation 360 degrees



    2. Connection of a driving motor from the left or right side,



    3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory



    4. Simple installation and low maintenance



    5. Rational space utilization



    6. The gear is self-locking; therefore a brake is not necessary



    7. Easy and fluent method of starting and stopping



    8. High accuracy



    Parameters of ZVE slewing drives



    Model Rated Output Torque Ratio Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
      N.m N.m kN kN N.m degree Yes kg
    3" 150 31:1 1500 3.6 15 1750 40% ≤0.03 Yes 13kg
    5" 317.5 37:1 5000 16 27 2300 40% ≤0.03 Yes 18kg
    7" 875 57:1 7000 34 58 3300 40% ≤0.03 Yes 28kg



    The gear and worm are contact in a condition of near perfect mesh. This will in turn allows for a highly efficient transfer of driving force, uniform load distribution and a very impressive level of positioning accuracy in drive
