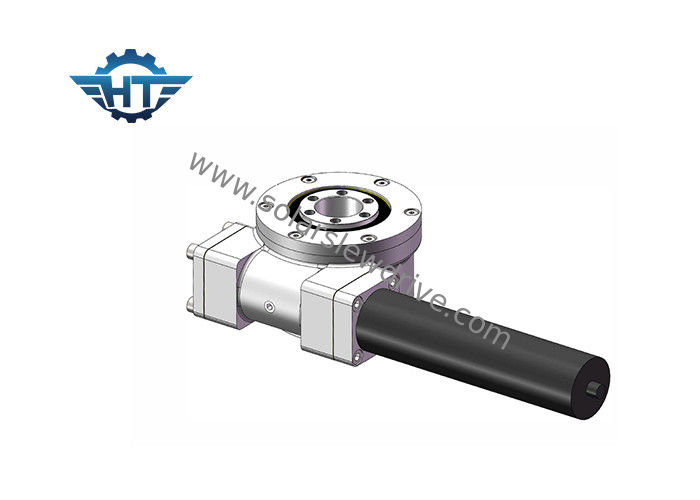

1 Inch To 25 Inches Worm Gear Slew Drive With Low Speed And High Torque For Solar Trackers

1 Inch To 25 Inches Worm Gear Slew Drive With Low Speed And High Torque For Solar Trackers

    • 1 Inch To 25 Inches Worm Gear Slew Drive With Low Speed And High Torque For Solar Trackers
  • 1 Inch To 25 Inches Worm Gear Slew Drive With Low Speed And High Torque For Solar Trackers

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE1"~25"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: 1~25 Gear Ratio: 31:1~150:1
    Application: Solar Trackers Place Of Origin: Changzhou, China
    Driver: Electric Motor Certificate: ISO9001, CE
    Installation: Vertical Maintenance: Free
    Color: As Requested Backlash: Less Than 0.1 Degree
    High Light:

    worm drive gearbox

    ,

    worm gear slewing ring

    Product Description



    Our slewing drives come in a variety of model sizes from 1 inch to 25 inches, performance ranges from 0.3 to 21 kNm. We also have slewing drives of different backlash. The drives are well suited for applications that require both load holding and rotational torque from the same gear box. They can also be made with dual axes of rotation, (turning axes at the same time) or with dual drives on the same axis, (two worm threads driving the same ring gear in one axis), and can be mounted vertically, horizontally or both.


    Vertical Series

    Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
    N.m N.m kN kN N.m degree Yes kg
    3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
    5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
    7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
    8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
    9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
    12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
    14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
    17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
    21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
    25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



    Horizontal Series

    Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
    N.m N.m N.m kN kN degree Yes kg
    1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
    3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
    5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
    7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
    9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
    12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
    14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
    17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
    21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
    25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182



    Dual axis Series

    Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
    N.m N.m kN kN N.m degree Yes kg
    3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 21kg
    5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 32kg
    7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 54kg
    9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 88kg
    12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 157 kg
    14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 214kg
    17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 315kg
    21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 481kg
    25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 682 kg



    Double Worm Series

    Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
    N.m N.m kN kN N.m degree Yes kg
    14" 85:1 12225 68000 340 130 110000 40% ≤0.1 Yes 70 kg
    17" 102:1 18525 160000 480 190 131200 40% ≤0.1 Yes 102 kg
    21" 125:1 30750 240000 980 390 162000 40% ≤0.1 Yes 153 kg
    25" 150:1 36750 360000 1200 430 178000 40% ≤0.1 Yes 202 kg
