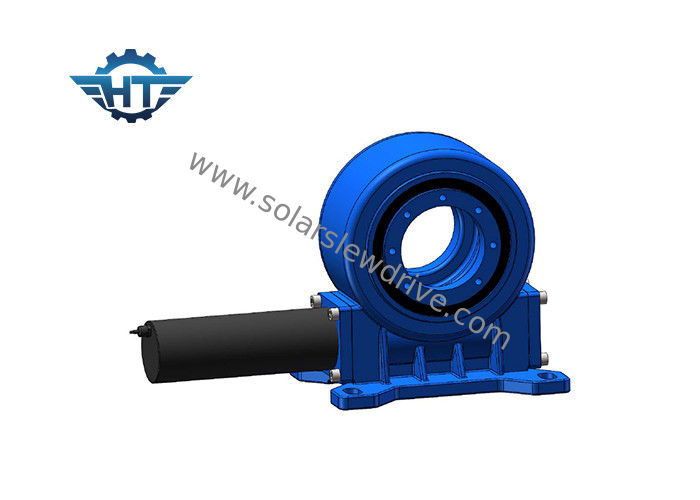

7 Inch Vertical Single Axis Worm Gear Slew Drive For PV Stations And Concentrated Power Stations

7 Inch Vertical Single Axis Worm Gear Slew Drive For PV Stations And Concentrated Power Stations

  • 7 Inch Vertical Single Axis Worm Gear Slew Drive For PV Stations And Concentrated Power Stations
7 Inch Vertical Single Axis Worm Gear Slew Drive For PV Stations And Concentrated Power Stations
Product Details:
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Place Of Origin: Changzhou, China Model: VE7
Gear Ratio: 57:1 Application: Solar Trackers
Driver: 12/24 VDC Planetary Gear Motor Certificate: ISO9001, CE
Installation: Vertical Maintenance: Free
Color: As Requested Backlash: Less Than 0.1 Degree
High Light:

worm drive gearbox

,

worm gear motor

Product Description



Function

Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear, in general, the shaft is driven by electric gear motor.



Gear ratio

The rotation of the horizontal worm turns a gear about an axis perpendicular to the screw axis. This combination reduces the speed of the driven member and also multiplies its torque; increasing it proportionally as the speed decreases.The speed ratio of shafts depends upon the relation of the number of threads on the worm to the number of teeth in the worm wheel or gear.



Hourglass worm

Our slewing drives are using hourglass worm technology, in which the worm is shaped to engage more teeth in the gear. This increased tooth engagement results in greater strength, efficiency and durability.



Parameters



Model: VE7 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 1750 N.m
Tilting Moment Torque 5 K N.m Holding Torque 9.2 K N.m
Static Axial Rating 34 KN Static Radial Rating 58 KN
Dynamic Axial Rating 17 KN Dynamic Radial Rating 38 KN
Gear Ratio 57:1 Efficiency 40%



Applications



solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.



Related Products



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg
