Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE14" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | SE14 | Gear Ratio: | 85:1 |
|---|---|---|---|
| Efficiency: | 40% | Color: | RAL 9006 Or As Requested |
| Application: | Solar Tracker | Place Of Origin: | Changzhou, China |
| Driver: | Motor | Warranty: | 5~10 Years |
| Certificate: | ISO9001, CE | Installation Site: | Open Field |
| Feature: | Long Life | Maintenance: | 5 Years |
| High Light: | worm drive gearbox,worm gear motor |
||

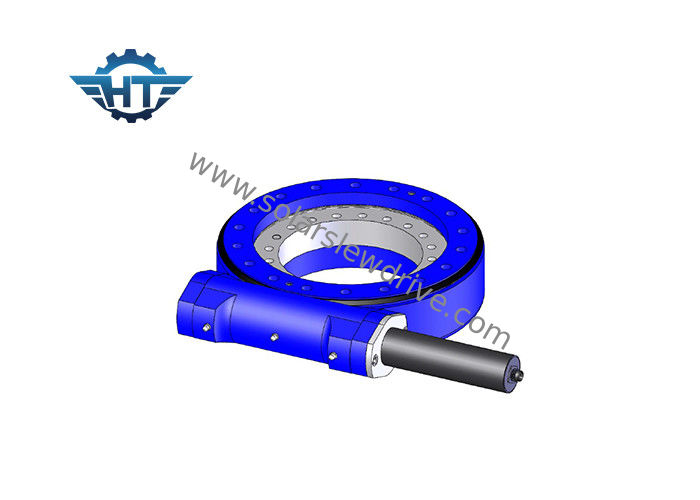

SE14 Gear Ratio 85 / 1 Small Backlash Worm Gear Slew Drive For Single Axis And Dual Axis Solar Trackers
Description
Structural characteristics
Slewing worm drive is consisting of worm gear, worm shaft, housing, bearing, motor and so on. Motor drive the worm shaft, the worm and envelop worm and gear are engaged to increase the torque, stable and reliable.
Performance
Slewing drive is able to sustain more axial load, radial load and tilting moment. Turntable or frame rotate at azimuth and elevation driven by slewing drive.
Application scope
Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
Performance Table of SE14
| Model | horizontal 14 inch worm drive |
| Ratio | 85:1 |
| IP Grade | IP66 |
| Rated Output Torque | 44 kNm |
| Tilting Torque | 135 kNm |
| Axial Load | 680 kN |
| Radial Load | 230 kN |
| Holding Torque | 68 kNm |
| Efficiency | 40% |
| Precision | ≤0.1 ° |
| Self-locking | Yes |
| Weight | 62 kg |
| Working Temperature | -30～+120 ℃ |
Technical Data of SE Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Our Services
There are more than 10 different sizes, starting from 3' size to 25" inch size, among them are 5", 7", 9" 12", 14", 17", 19" and 21". They are both widely used in solar tracking systems (PV, CPV, HCPV and heliostat) and regular vehicles, such as man lifts, truck cranes, as well as modular vehicles.
