Special Designed Dual Axis Slew Drive AC / DC Motor For Flat Single Tracking System

Special Designed Dual Axis Slew Drive AC / DC Motor For Flat Single Tracking System

  • Special Designed Dual Axis Slew Drive AC / DC Motor For Flat Single Tracking System
  • Special Designed Dual Axis Slew Drive AC / DC Motor For Flat Single Tracking System
Special Designed Dual Axis Slew Drive AC / DC Motor For Flat Single Tracking System
Product Details:
Certification: CE, ISO9001
Model Number: SDE3
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Place Of Origin: China Brand Name: Hangtuo
Material: 50Mn, 42CrMo, QT Model: SDE 3
Gear Ratio: 31:1 Color: As Requested
Motor Mounting: Electric And Hydraulic Motor Warranty: 3 Years
High Light:

slewing ring drive

,

small slew drive

Special Designed Dual Axis Slew Drive AC / DC Motor For Flat Single Tracking System



Description

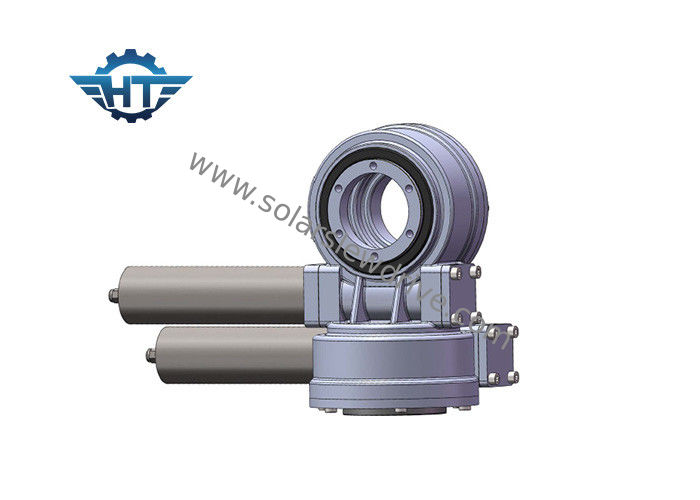

SDE3 dual axis slewing drive for PV,CPV solar tracking system.
Hangtuo Slewing Drive is a professional slewing drive research and development manufacturer,which are widely applied on new energy(single and dual axis PV/CPV/CSP solar tracking system,wind power),engineering machinery(pavement construction machinery, port facilities and mining area), satellite receiver and other fields.


In the development of new productions constantly updated, Our slewing drives are designed with slewing ring and hourglass worm shaft, from the traditional point contact to surface contact, which has the advantage of strong output torque, smooth rotation and wear-resisting for bearing higher radial & axial load and tilting moment torque.


There are kinds of models of productions in our company from 3'' to 25''(raceway diameter).The slewing drive can be customized to meet the special requirement for new energy and engineering machinery application .Our production are being chosen by customers abroad and home with reliable quality and reputation.



Application Area


Our SDE series slewing drive mainly used for PV, STP, CSP solar tracking systems.



Our other types of slewing drives are widely used for construction applications, such as truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications, heavy load transporters, bridge inspection equipment, telescopic working platform, basket rotator requirements, yacht crane, cement mixer, excavator, etc. We can also provide multiple size of slewing drive and slewing berarings, hydraulic motor & DC Motor to match with slewing drives. Products have been exported to all over the world.



Special Designed Dual Axis Slew Drive AC / DC Motor For Flat Single Tracking System 0



Features



1. Strong overturning moment based on slewing ring

2. Adopt enveloping worm drive

3. Drive larger load for using multi tooth contact

4. Better static self-locking function



Installation Instructions



Horizontal installation & Vertical installation, see below picture.

Tow single sleiwng drives can achieve dual axis slewing drive systems.

One dual axis slewing drive can achieve dual axis slewing drive systems.

One slewing drive with one linear actuator can also achieve dual axis slewing drives.



SDE Performance Parameters



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.
