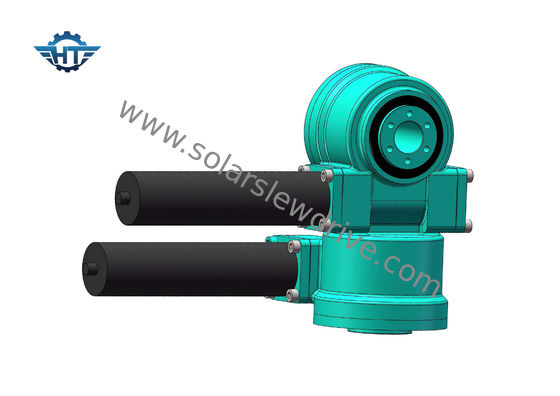

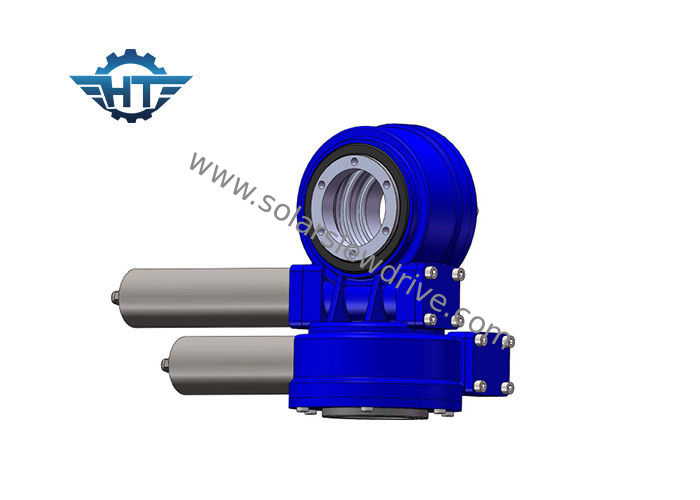

SDE 21 High Torque Dual Axis Slew Drive For Satellite / Robot / Construction Machinery

SDE 21 High Torque Dual Axis Slew Drive For Satellite / Robot / Construction Machinery

  • SDE 21 High Torque Dual Axis Slew Drive For Satellite / Robot / Construction Machinery
  • SDE 21 High Torque Dual Axis Slew Drive For Satellite / Robot / Construction Machinery
SDE 21 High Torque Dual Axis Slew Drive For Satellite / Robot / Construction Machinery
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE 21"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo, QT Model: Dual Axis 21 Inches
Holding Torque: 89 KNm Tilting Torque: 65 KNm
Efficiency: 40% Color: As Requested
Backlash: Less Than 0.1 Degree
High Light:

small slew drive

,

worm drive motor

SDE 21 High Torque Dual Axis Slew Drive For Satellite / Robot / Construction Machinery



Description



Dual-axis slewing drive designing with two axis drive at the same time. It is more tooth contacting and double output torque than SE Series slewing drive.This product has a long history, process technology has been very mature now.



Features

  • high quality
  • competitive price
  • reliable reputation

Gear Motor Options



Electric and planetary gearboxes can be designed according to customer's requirement.Slewing drive has the advantage for saving space in facilities,max load capacity in a compact design,extensive lifespan, reduced maintenance costs.



Applications



Dual axis slewing drive can be applied in solar tracking system, solar dish, PV, CPV, CSP, wind turbine and satellite dish.



SDE 21 High Torque Dual Axis Slew Drive For Satellite / Robot / Construction Machinery 0



SDE Model Performance Parameters



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705
