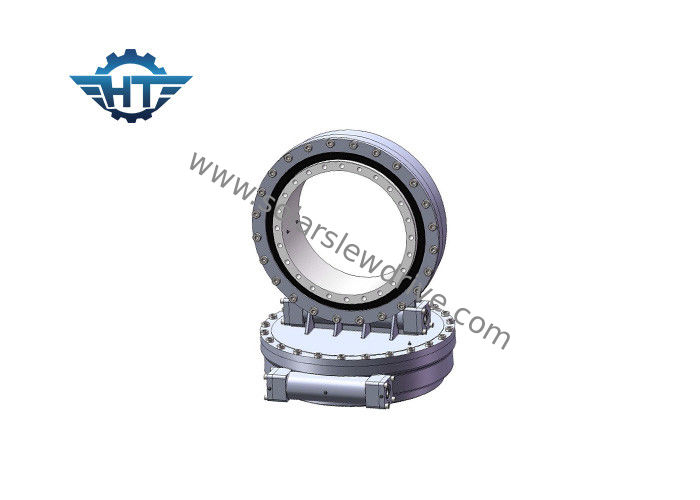

SDE 21 Gear Ratio 125 / 1 Worm Gear Slew Drive Enclosed Housing Hourglass For CPV
Product Advantage
SDE3,SDE7,SDE21 ISO9001/CE certificated slew drive worm gear for sun tracker
1) Higher output torque and holding load
2) Top tracking precision
3) Strong corrosion resistance and sealing effective
Application
SDE3,SDE7,SDE21 dual axis slewing drive slewing bearing for solar energy
Description
Slew drives are used for concurrent transmission of axial and radial forces as well as transmission of tilting moments. Slew drives consist of a ball or roller slewing ring, hydraulic or electric drives, and a completely enclosed housing. Series SE slew drives are designed with worm gear.
Data Sheet Of Dual Axis Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 7 |
Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
Application Fields
| Wind Power Field | Metallurgical Machinery |
| Light Industry | Heavy Equipments |
| Port/Marine Machiner | Military Products. |
| Construction Machinery Mining | Steel Works Equipment |
| Sewage Treatment Plant | Agricultural Machinery |
slewing drive for dual axis solar tracking system
