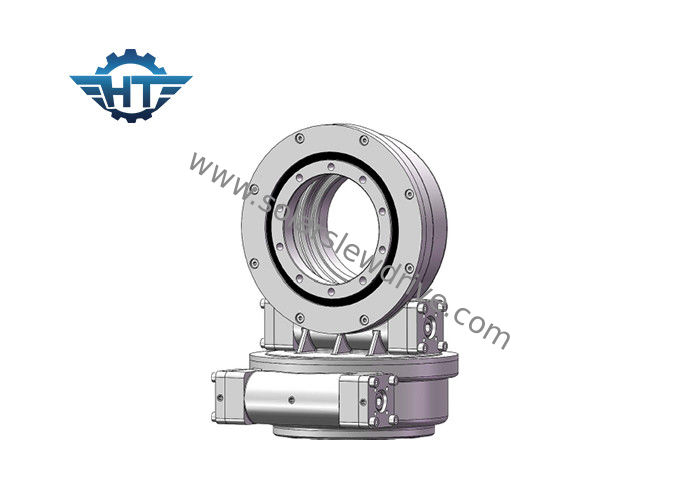

Customized SDE Slew Drive Gearbox For Satellite Antenna And Concentrated Photovoltaic System

Customized SDE Slew Drive Gearbox For Satellite Antenna And Concentrated Photovoltaic System

    • Customized SDE Slew Drive Gearbox For Satellite Antenna And Concentrated Photovoltaic System
    • Customized SDE Slew Drive Gearbox For Satellite Antenna And Concentrated Photovoltaic System
  • Customized SDE Slew Drive Gearbox For Satellite Antenna And Concentrated Photovoltaic System

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE7"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo, QT Model: SDE 7
    Gear Ratio: 57:1 Output Torque: 0.8 KNm
    Holding Torque: 6 KNm Tilting Torque: 9.2 KNm
    Efficiency: 40% Color: Based On RAL
    High Light:

    slewing ring drive

    ,

    worm drive motor

    Customized SDE Slew Drive Gearbox For Satellite Antenna And Concentrated Photovoltaic System



    Description



    Hangtuo‘s slewing drive is composed of the housing, slewing bearing, sealing, enveloping worm with some completed spare parts. We can also produce the Electronic motor and Hydraulic motor used for slewing drives, which can moves for clockwise direction and counter clockwise direction rotation.



    Advantage



    1. Strong overturning moment based on slewing ring

    2. Adopt enveloping worm drive

    3. Drive larger load for using multi tooth contact

    4. Better static self-locking function



    Performance Chart of SDE Slew Drives



    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
    3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
    5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
    7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
    9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
    12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
    14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
    17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
    21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
    25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



    Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.



    Classifications & Drawings



    There is usually single axis type; dual axis type, vertical type and dual worm type from 3 to 25 inch, for detail pls contact us for the sales drawing.



    For example the SDE5 inch sales drawing:



    The installation dimensions:

    Customized SDE Slew Drive Gearbox For Satellite Antenna And Concentrated Photovoltaic System



    The performance parameters:

    Customized SDE Slew Drive Gearbox For Satellite Antenna And Concentrated Photovoltaic System
