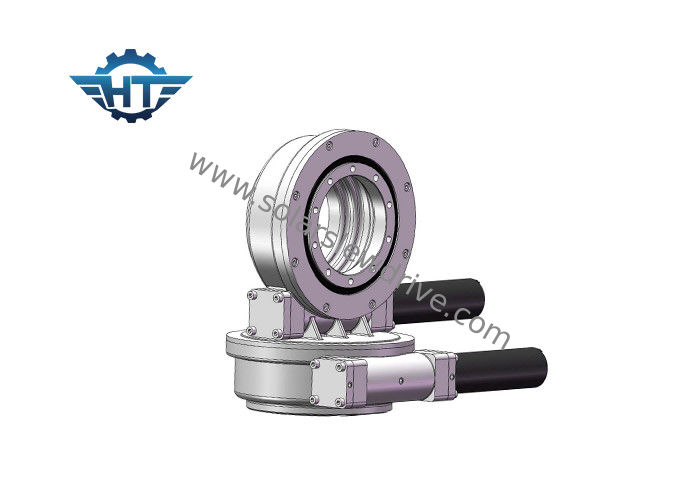

SDE7 Dual Axis Slew Drive With 24V Dc Motor For Solar Tracker System And For Solar Panels

SDE7 Dual Axis Slew Drive With 24V Dc Motor For Solar Tracker System And For Solar Panels

    • SDE7 Dual Axis Slew Drive With 24V Dc Motor For Solar Tracker System And For Solar Panels
    • SDE7 Dual Axis Slew Drive With 24V Dc Motor For Solar Tracker System And For Solar Panels
  • SDE7 Dual Axis Slew Drive With 24V Dc Motor For Solar Tracker System And For Solar Panels

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE7"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo,QT Model: SDE7
    Gear Ratio: 57:1 Rated Output Torque: 2000 Nm
    Holding Torque: 13500 Nm Tilting Torque: 13200 Nm
    Efficiency: 40% Standard Color: RAL 9006
    Axial Load: 34 KN Radial Load: 58 KN
    High Light:

    slewing ring drive

    ,

    worm drive motor

    SDE7 Dual Axis Slew Drive With 24V Dc Motor For Solar Tracker System And For Solar Panels



    Descripition



    Slewing drives are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.



    Features



    1. High backholding torque to improve the solar tracking system's safety

    2. Enveloping worm drive inside

    3. Multi tooth contact to ensure high load

    4. Self-locking function



    Technical Data



    Product Name SDE7 Slewing drive with 43Nm 24Vdc gear motors
    Output Torque 980 N.m ; 723 ft.lbs
    Max Output Torque 1938 N.m; 1429 ft.lbs
    Tilting Moment Torque 7000 N.m; 5163 ft.lbs
    Holding Torque 13200 N.m ; 9736 ft.lbs
    Static Axial Rating 133.20 kN ; 29943 lb
    Static Radial Rating 53 kN ; 11977 lb
    Dynamic Axial Rating 31.90 kN ; 7171 lb
    Dynamic Radial Rating 27.91 kN ; 6274 lb
    Motor Alternatives 380V/220V AC Motor ; Stepper Motor ; Brushless Motor
    Products Style Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower
    Application Feature Solar Tracking System, Industrial Machiner



    Applicatons



    SDE7 Dual Axis Slew Drive With 24V Dc Motor For Solar Tracker System And For Solar Panels





    Customized Services


    1. Special design based on different applications and projects
    2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
    3. Different colors are available based on RAL code; our standard color is RAL 9006.
