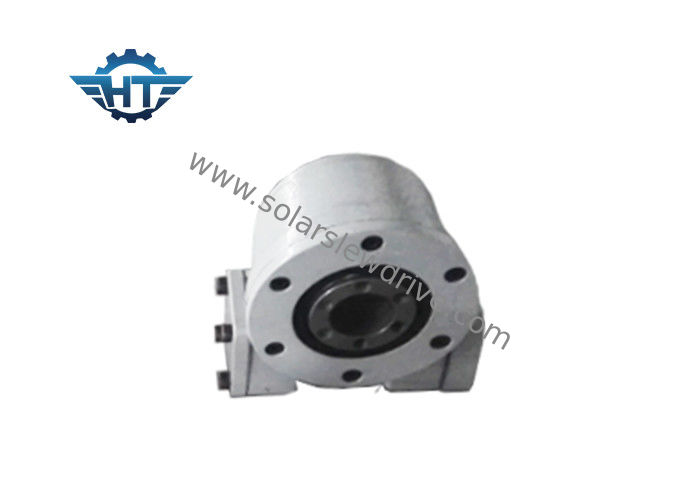

SE1 Worm Gear Slew Drive With 24vdc Electrical Motors For Pv Solar Tracking System

SE1 Worm Gear Slew Drive With 24vdc Electrical Motors For Pv Solar Tracking System

    • SE1 Worm Gear Slew Drive With 24vdc Electrical Motors For Pv Solar Tracking System
    • SE1 Worm Gear Slew Drive With 24vdc Electrical Motors For Pv Solar Tracking System
  • SE1 Worm Gear Slew Drive With 24vdc Electrical Motors For Pv Solar Tracking System

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: ZSE1"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Model: SE1
    Gear Ratio: 32:1 Rated Output Torque: 400Nm
    Holding Torque: 1800 Nm Tilting Torque: 1000Nm
    Efficiency: 40% Standard Color: RAL 9006
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive

    SE1 Worm Gear Slew Drive With 24vdc Electrical Motors For Pv Solar Tracking System



    Product Description



    1. Tooth type: Helical tooth
    2. Bearing load: light load
    3. Drive type: Motor drive
    4. Diameter of rotary center: 40mm

    5. Module: 5
    6. Number of worm shafts: 1
    7. Gear Ratio: 28: 1
    8. Efficiency: 40%
    9. Self-locking gears: YES
    10. Weight: 6kg



    Sales Drawing



    SE1 Worm Gear Slew Drive With 24vdc Electrical Motors For Pv Solar Tracking System



    slewing drives are widely applied in horizontal single axis tracking system, inclined single tracking system and dual axis PV solar tracking system, heliostat solar tower system, parabolic trough concentrated power station, solar dish tracker and linear fresnel thermal system, as well as marine crane, lift crane, timber grab, mining equipment, cutting equipment, aerial working platform, truck crane, drilling rig, turn table, automation line and so on.



    SE1 Worm Gear Slew Drive With 24vdc Electrical Motors For Pv Solar Tracking System  SE1 Worm Gear Slew Drive With 24vdc Electrical Motors For Pv Solar Tracking System  SE1 Worm Gear Slew Drive With 24vdc Electrical Motors For Pv Solar Tracking System



    Advantages



    1. High backholding torque to improve the solar tracking system's safety

    2. 360 degree rotating range

    3. Enveloping worm drive inside

    4. Multi tooth contact to ensure high load

    5. Self-locking function



    Parameters of SE Series



    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
    1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
    3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
    5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
    7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
    9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
    12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
    14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
    17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
    21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
    25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204


    Remark: For more detailed dimensions and parameters, please refer to our sales drawings.



    Customized Services


    1. Special design based on different applications and projects
    2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
    3. Different colors are available based on RAL code; our standard color is RAL 9006.
