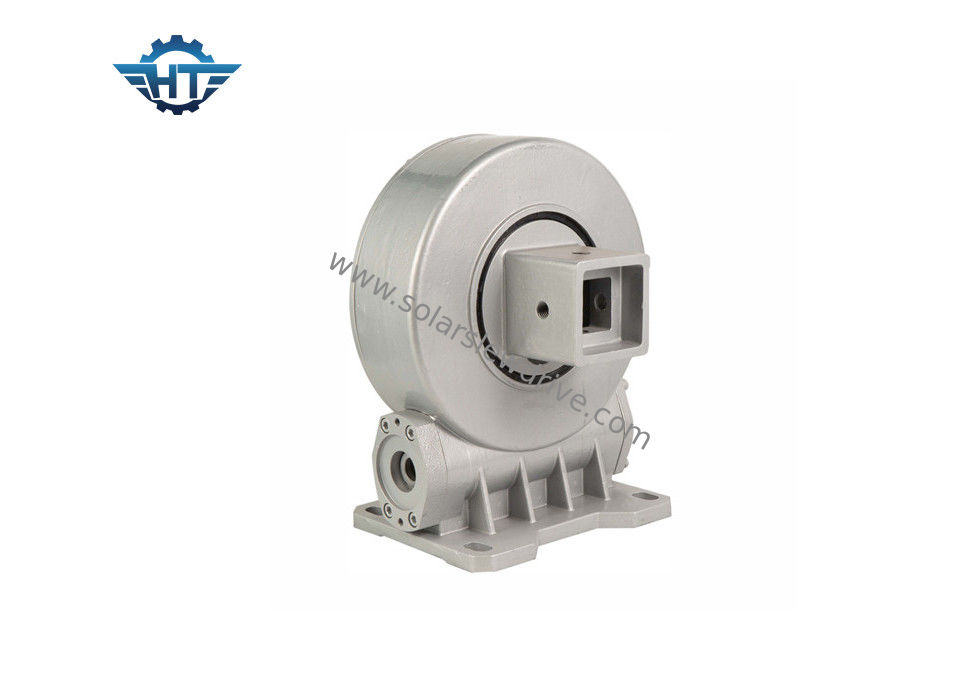

VE9 Slew Drive Gearbox With 24v dc Motor For Single Axis Tracking System

VE9 Slew Drive Gearbox With 24v dc Motor For Single Axis Tracking System

    • VE9 Slew Drive Gearbox With 24v dc Motor For Single Axis Tracking System
    • VE9 Slew Drive Gearbox With 24v dc Motor For Single Axis Tracking System
    • VE9 Slew Drive Gearbox With 24v dc Motor For Single Axis Tracking System
  • VE9 Slew Drive Gearbox With 24v dc Motor For Single Axis Tracking System

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: VE9"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Model: VE9"
    Gear Ratio: 61:1 Output Torque: 2250 Nm
    Holding Torque: 31~45 KNm Tilting Torque: 16~21 KNm
    Efficiency: 40% Standard Color: RAL 9006
    High Light:

    hydraulic slew motor

    ,

    slewing gear

    VE9 Slew Drive Gearbox With 24v dc Motor For Single Axis Tracking System



    Description



    The Series VE is a robust enclosed-gearing slewing drive solution equipped for high duty cycle, low-speed (<1 RPM) applications. Its application is solar energy.



    VE9 Slew Drive Gearbox With 24v dc Motor For Single Axis Tracking System



    Advantages



    1. High backholding torque to improve the solar tracking system's safety

    2. Hard stop inside in case the mulfunctioning of the software control system

    3. Enveloping worm drive inside

    4. Multi tooth contact to ensure high load

    5. Self-locking function



    Parameters of VE Series



    Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
    3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
    5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
    7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
    8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
    9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
    12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
    14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
    17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
    21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
    25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



    Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.



    Customized Services


    1. Special design based on different applications and projects
    2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
    3. Different colors are available based on RAL code; our standard color is RAL 9006.



    Applicatons



    Single axis tracking system

    Single axis tracking system includes the flat single axis and tilted single axis.
